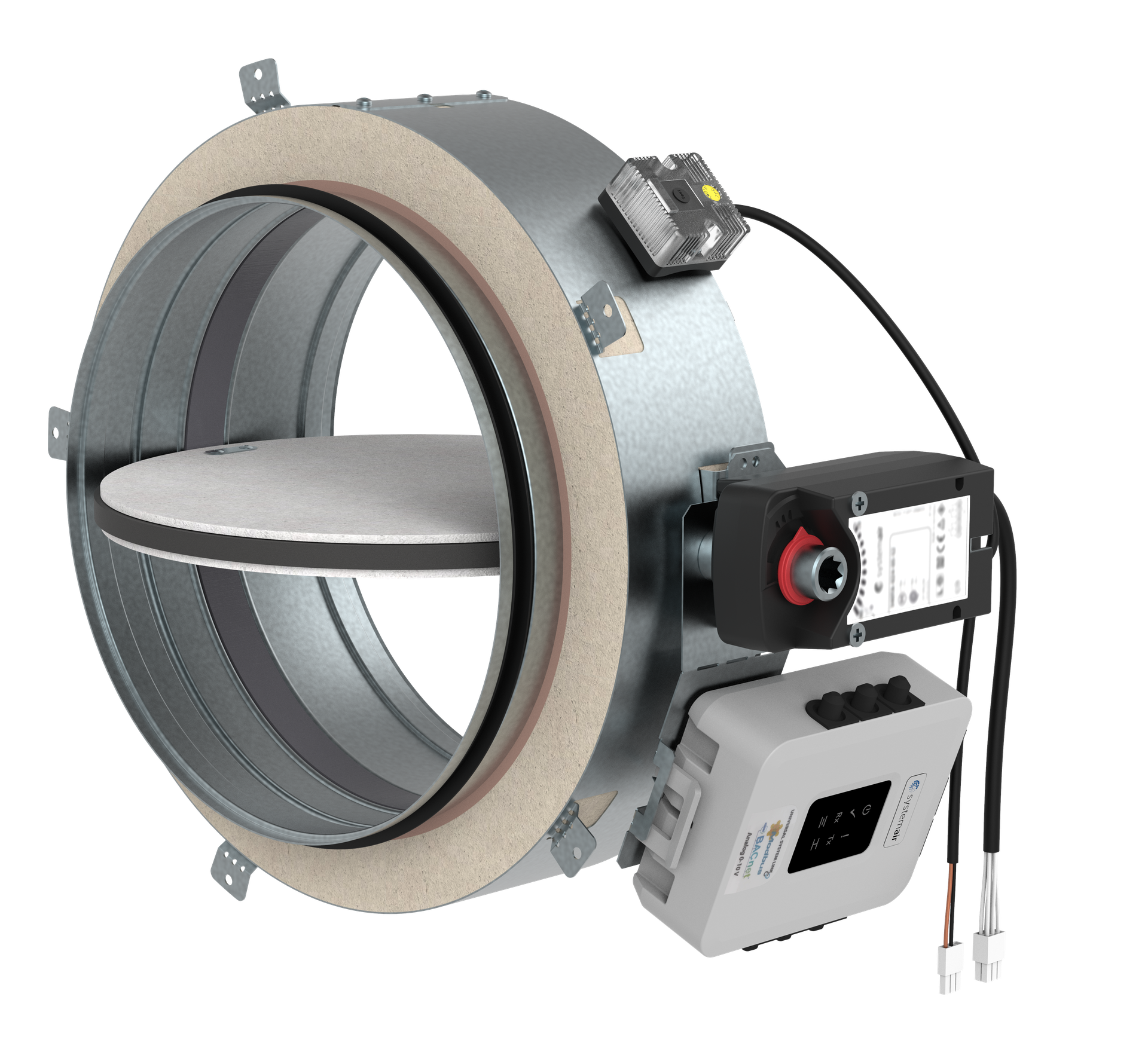

F-R60K Circular Fire Dampers
Exceptional performance meets easy installation.
Fire resistivity EI60S and CE certified.
Exceptionally low pressure drop
Tightness class 3C even with equipped thermal fuse.
Kit significantly reduced installation time across a variety of installation types
Reducing time
Make a better use of your valuable time. Shortening time spent on product & installation selection up to construction works & maintenance time.
Feel free
Kit length on the dampers body stands out only 100 mm from the wall. Allowing you to break free from constrains endured by conventional damper body lengths.
Installation simplified
There is just one easy way to install the damper on a great range of standard constructions and non-standard constructions, as shaft walls. Remotely from these constructions are installations also that easy.
Manual mechanism available
The product is now available with a new manual mechanism! Scroll down to learn more
F-R60K fire dampers are CE certified following the Construction Products Regulation according to EN 15650:2010. Tested according to EN 1366-2:2015 and classified according to EN 13501-3 + A1:2009.
The fire damper together with its installation form an inseparable part of the fire resistivity rating.
F-R60K fire dampers are designed for the installations listed and described in their Handbook.
)
F-R60K H0/H2
A new era of manual mechanisms designed to make life easier and safer
Designed in Systemair's signature colours, the F-R60K stands out with its sleek aesthetics while delivering comfort and reliability. Tested under fire conditions, it complies with stringent hygienic standards, ensuring it meets safety and quality requirements.
Inspect or replace the thermal fuse in just seconds with defined access to internal components
Avoid faulty fuse installation or unintended damper operation with the fusible link mechanism’s intuitive design that makes key features easy to identify
Achieve greater control by upgrading the manual mechanism with one or two microswitches to indicate damper blade positions
)
Casing
Made from sturdy galvanised steel. Casing leakage according to EN 1751 class C
)
Kit
Kit manufactured from sturdy casted vermiculite
Activation types
Be it small installation or an advanced project. Our range of activation types will help you succeed
)
Blades
Made from non-asbestos calcium silicate board with polyurethane foam seals for cold smoke and come with an intumescent seal that expands in case of fire. Leakage class 3 according to EN 1751
