CFC-A Clean Filtering Cassettes
Clean filtering cassette with H14 HEPA filter
High-efficiency air filtration
For air supply or extraction
Designed for multiple types of ceiling installations

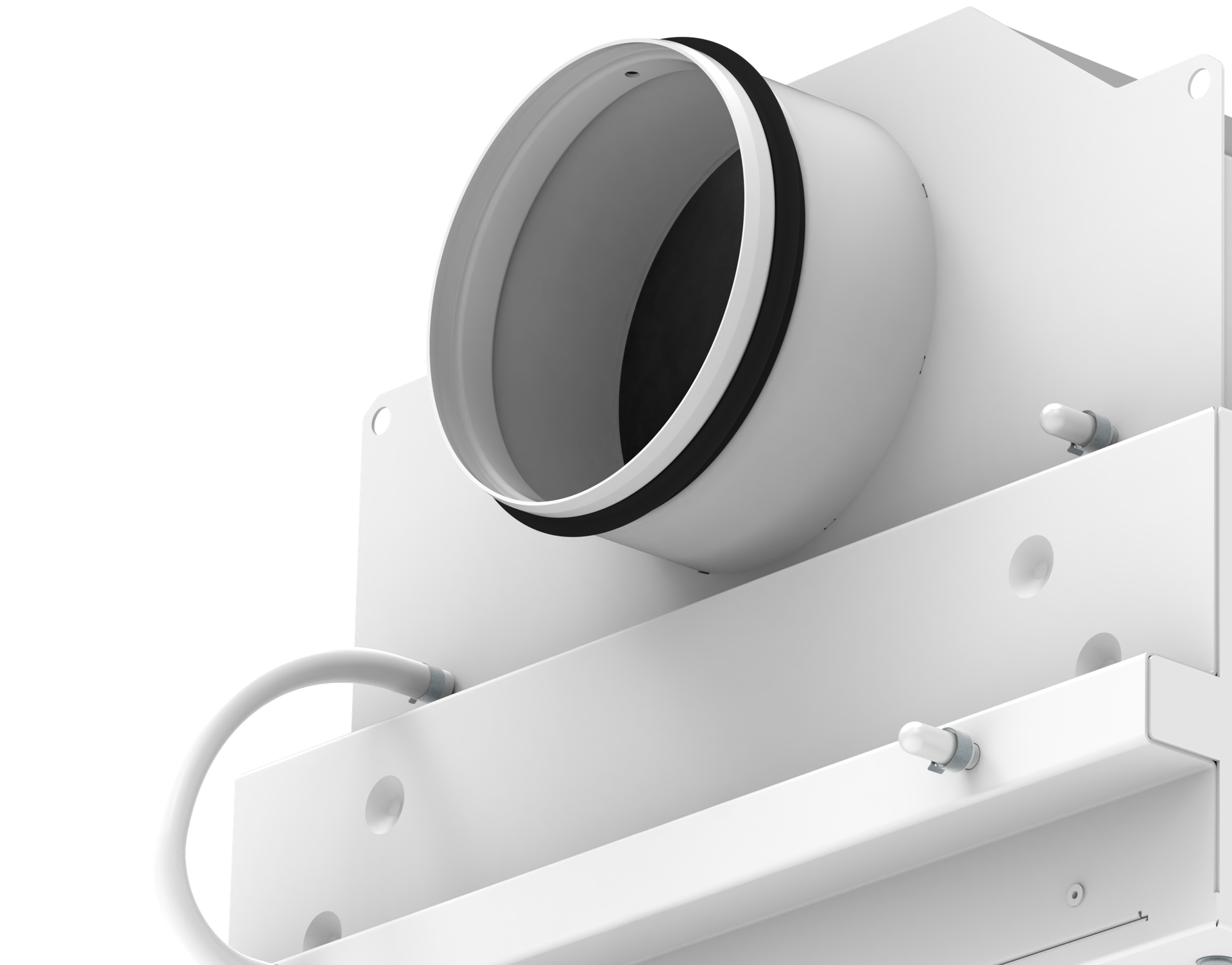

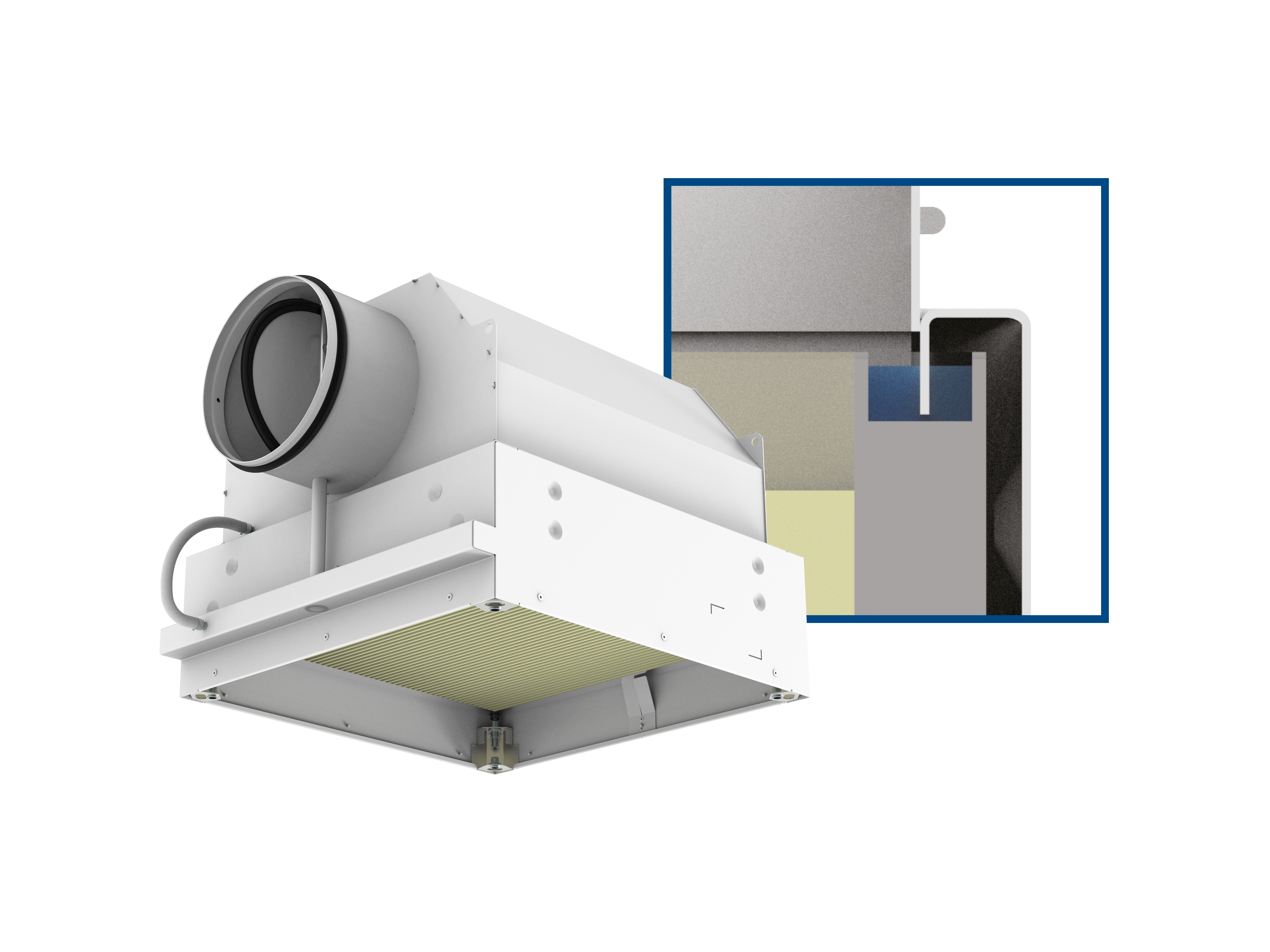

Airtight shut-off damper available for circular duct connections (CFC-A & CFC-AG)

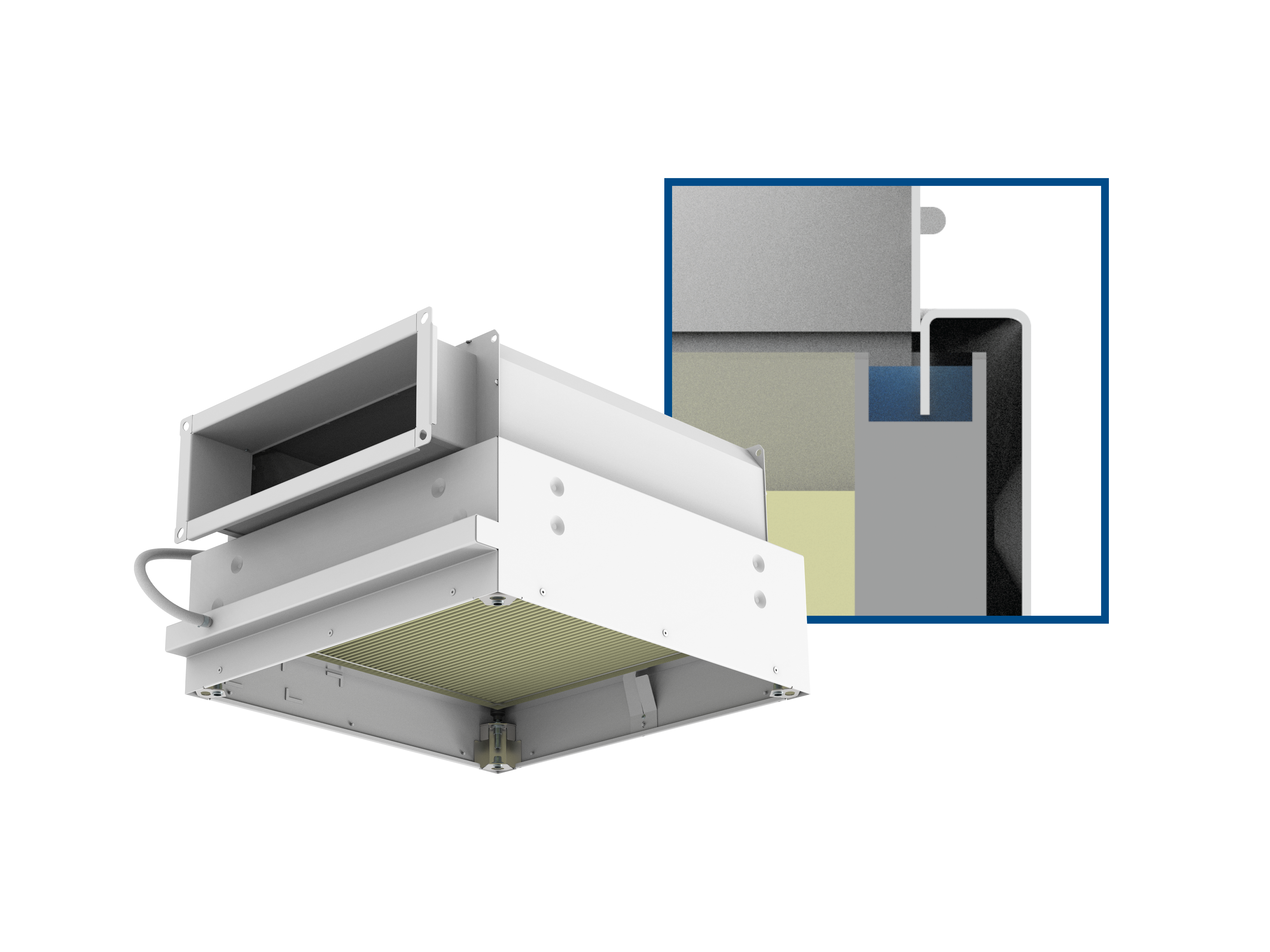

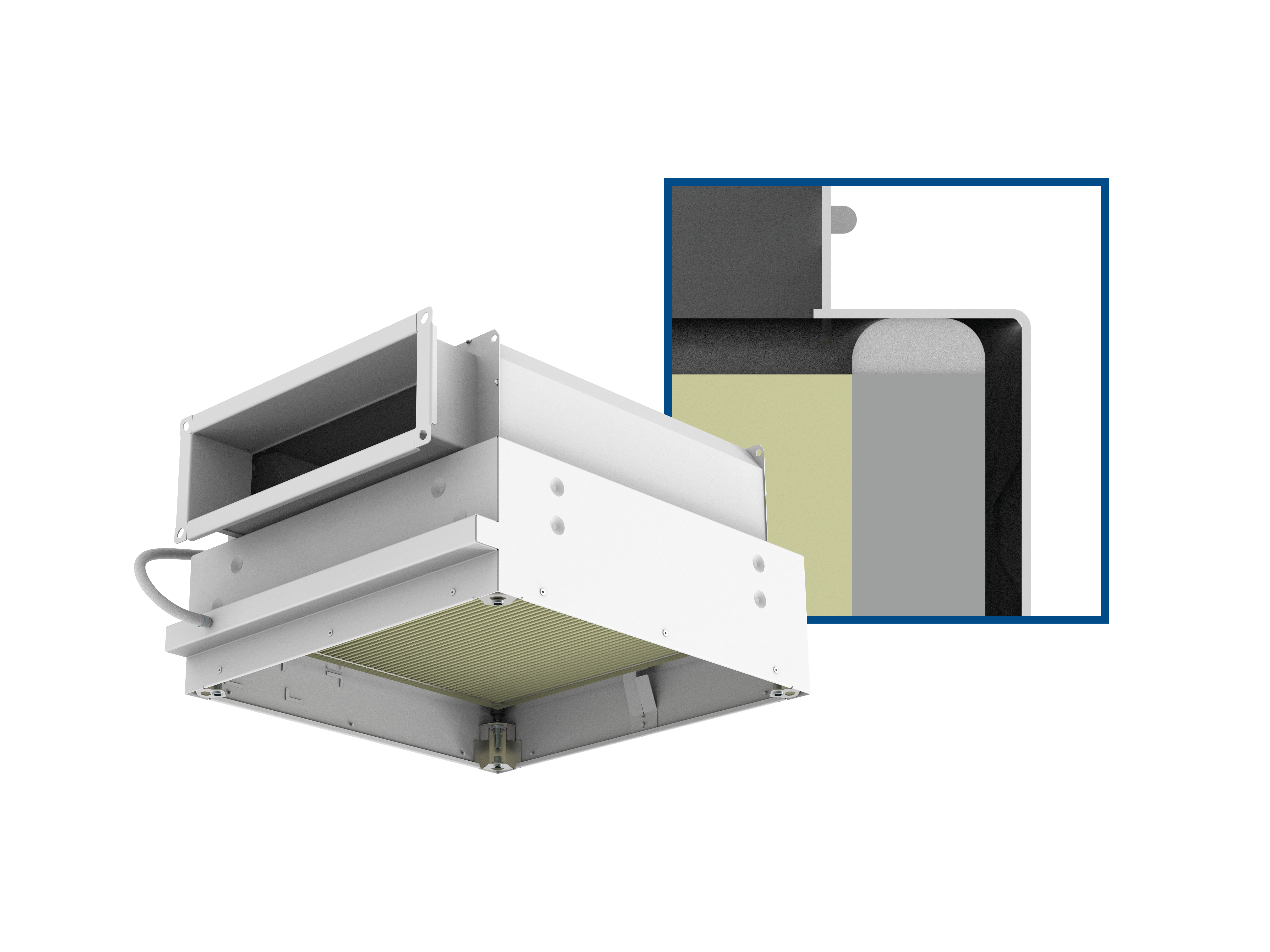

Low-profile design for ceilings with limited space (CFC-AS & CFC-AGS)
Complies with the hygiene requirements of VDI 6022
Provides clean and sterile air in cleanroom zones classified according to ISO 14644-1
Leakage class: L1 according to EN 1886:2007
Adaptable
The CFC- A clean filtering cassette is designed for use with multiple types of ceiling installations.
Reliable performance
The CFC-A is designed to ensure tightness between the filter and the cassette to guarantee reliable performance.
High-capacity filter
The high-efficiency filter within the aluminium frame is designed to filtrate all unwanted particles and deliver a high grade of air cleanness.
Additional Measurement Ports
Measure static pressure drop (ΔP) or actual filter resistance, and sample upstream aerosol concentration simultaneously.
The CFC A is a clean filtering cassette used as a terminal device for ventilation. They contain a high-efficiency particulate filter that is designed to filtrate all unwanted particles and deliver a high grade of air cleanness. This high-performance filter makes the CFC-A suitable for ventilation of spaces with exacting air cleanliness requirements such as surgery rooms and medical intensive care units, laboratories and industrial clean production sites.
The CFC-A is made from carbon steel sheet. The casing is spot welded and hermetised by polymer sealant. The CFC series is highly adaptable for multiple types of ceiling installation and can be used for air supply as well as air extraction. Different sizes of duct connections are available for each filter size. A version with an airtight shut-off damper is also available. The manually operated damper is situated in the circular duct connection. The duct connection spigot has a gasket from EPDM.
)
The choice is yours!

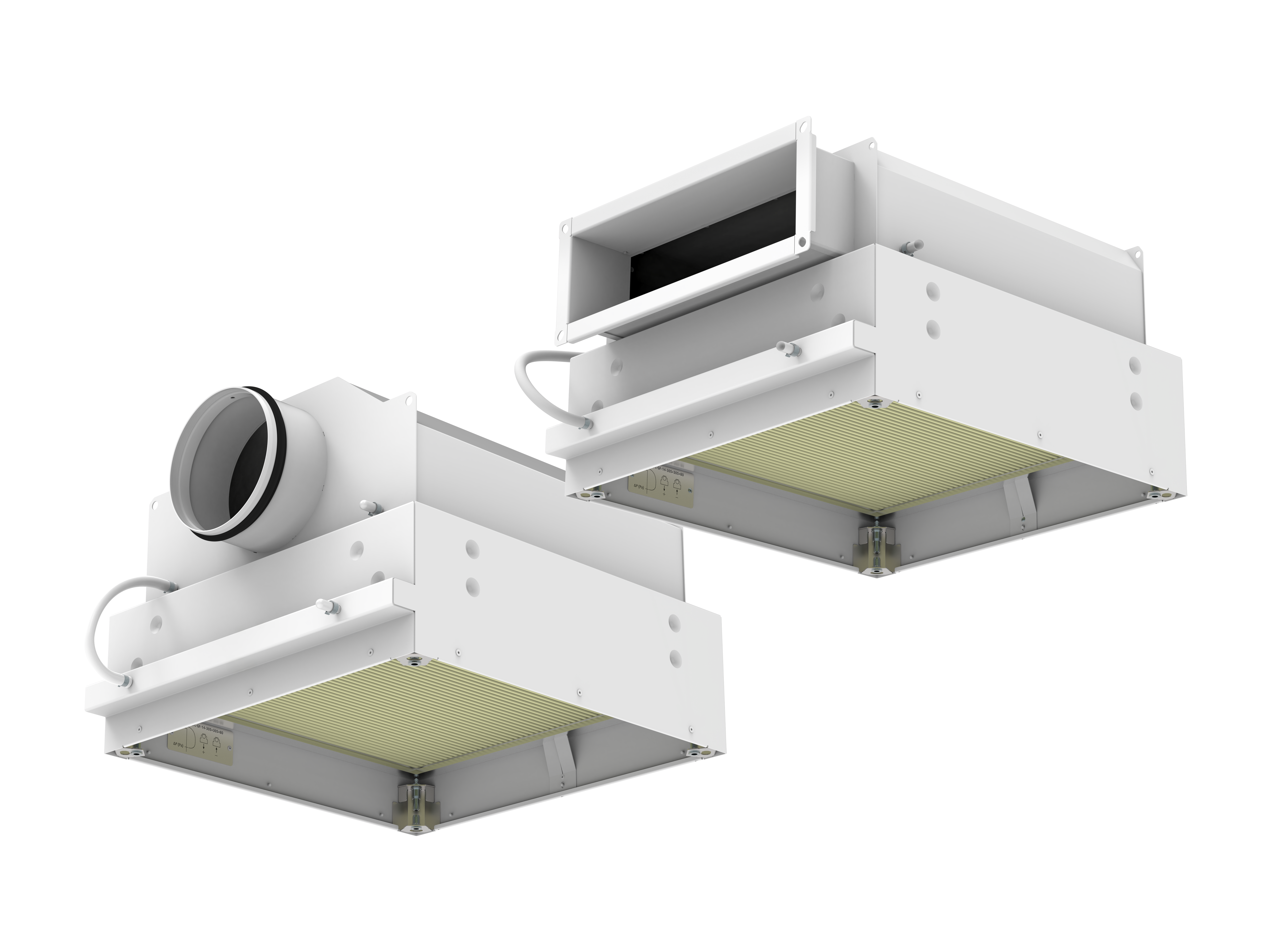

CFC-A
The CFC-A clean filtering cassette comes with 2 types of duct connection each either horizontal or vertical, 5 types of front panels and 2 types of H14 HEPA filters, making sure that there is a combination which is just right for you!
)
)
NEW! Additional Measurement Ports
Additional measurement ports enhance air filtration monitoring by enabling simultaneous measurement of static pressure drop (ΔP) or filter resistance, and upstream aerosol concentration. Static pressure drop helps assess airflow efficiency and detect blockages, while filter resistance indicates the filter’s condition. Measuring upstream aerosol concentration provides insight into the effectiveness of the system in capturing particulates, allowing for better optimization and maintenance of air quality systems.
