Ultimate flexibility. Trustworthy performance.BAAir Handling Units
?_=1713340407537)
)
Easy to customise.
BA units come as standardised, modular sections designed to fit together seamlessly.
So you can quickly create custom systems to meet your exact performance, footprint, and energy requirements.
Easy to control.
All BA units are available with preinstalled, preconfigured, and fully integrated control systems. It is a user-friendly system where functions and parameters can be managed with the inbuilt controller or through a building management system.
With full control over all units, it’s easy to optimise their performance, energy savings, and operating costs.
?_=1713340649212)
BA Smart
Air Handling Units
?_=1713340630180)
BA Unit
Air Handling Units · Eurovent-certified modular air handling units suitable for medium or high air pressure systems
BA Units can handle airflows from 1,000 to 178,000 m3/h
Modular and robust units designed for medium to high air pressure systems with static pressure up to 2,300 pa
Eurovent-certified units ensure trustworthy performance data
Available with options for integrated controls for a simple, plug-and-play start-up
?_=1713340645225)

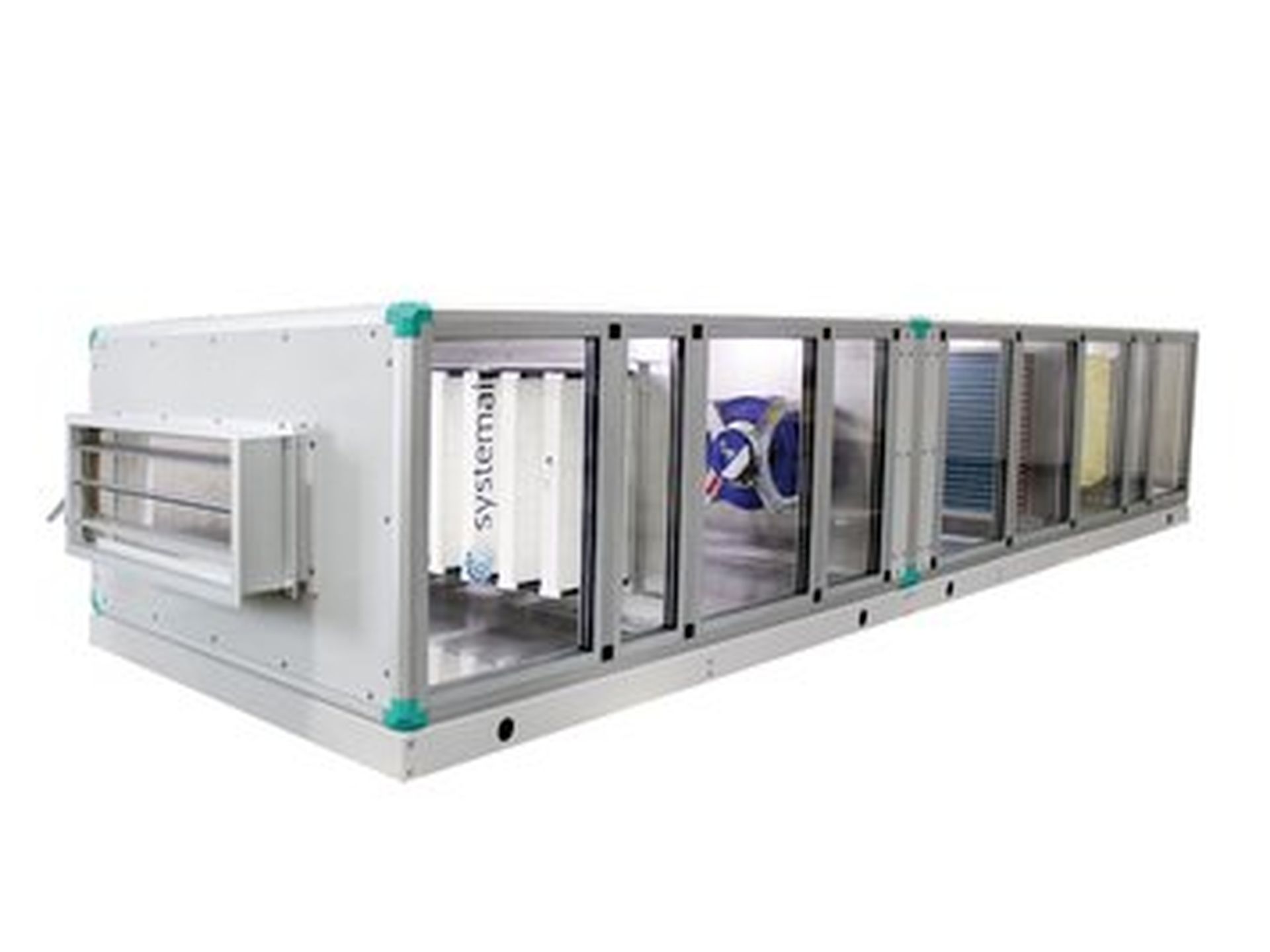

BA Hygiene
Air Handling Units · Modular air handling unit with enhanced energy efficiency and certified by Eurovent for hygienic applications
BA Hygiene units can handle airflows from 1,000 to 178,000 CMH
Ideal for medium to high air pressure systems with static pressure up to 2300 pa
Eurovent certified for hygienic applications
Available with options for integrated controls for simple, plug-and-play start-up
Enhanced thermal transmittance
)
BA+
Air Handling Units · Eurovent-certified modular air handling units with enhanced energy efficiency through improved thermal transmittance
BA Plus units can handle airflows from 1,000 to 178,000 m3/h
Ideal for medium to high air pressure systems with static pressure up to 2300 pa
Eurovent-certified units ensure trustworthy performance data
Available with options for integrated controls for a simple, plug-and-play start-up
Enhanced thermal transmittance
)
The heart of any ventilation system
BA air handling units are designed for any configuration – and any application.
The flexibility makes it possible to optimise the AHU for specific requirements
)
Supply and extract dampers
Low-leakage extruded aluminium dampers suitable for manual or motorised operations.
Heat transfer coils
Copper tube aluminium finned heat transfer coils are available in multiple rows deep and are designed to give certified performance output for heating, cooling and recovery applications.
Base Frame
The base frame is made of galvanised steel with lifting provision.
Supply and extract filters
Units are offered with high quality and low pressure drop filters of different particulate efficiency.
EC fan and motors
A wide range of fans and motors can be offered based on the requirement.
EC fans
Belt-driven DIDW centrifugal FC/BC fans
Centrifugal plug fan
Motors with IE2/IE3 efficiency
PM motor with IE4/IE5 efficiency
Low noise with high-efficiency axial fans with PM Motors
Tightness and corners
Framework of airtight, elegant and sturdy extruded aluminium hallow profile with polyamide thermal break profile having glass filled nylon corners and spacers.
Control system
Units can be provided with factory-tested control systems for all necessary standard functions and the settings can be easily adjusted to desired operational values.
Inspection doors and handles
Adequate-sized inspection doors are provided in each section fitted with high quality handles.
Sustainable and certified
From design to production, BA Units comply with leading sustainability, performance and energy efficiency standards.
GreenPro EcoLabel
CE Marking
Choose SMART. Get BA.
Systemair Modular AHU with Advanced Reliable Technology
The BA Smart units are available with a pre-installed, preconfigured and fully integrated control system. It is a user-friendly system where functions and parameters can be selected from the inbuilt Human Machine Interface (HMI) of the controller or of the Building Management System.
The operating data, set points, alarms, operating status and time settings are displayed in the controller. The control system is preloaded with design temperature, relative humidity, pressure drops, time settings and control sequence to simplify field commissioning, all of which can be modified according to need.
Inspired by smartphones, the accessible controls enable a seamless user experience within the robust design.
Find the right BA AHU for your project
Use the Systemair BAHU software to help you select the best BA configuration for your project.
And best of all – you can download all data and documentation before you place your order.
World-class production facilities
BA Units are designed and produced in Systemair India, which features an AMCA-accredited laboratory for performing measurements as per AMCA 210 and AMCA 300 standards. The Laboratory consists of a reverberation room and Air Flow Chamber for precise air & sound measurement.
Systemair's AMCA accredited Lab ensures the credibility of measurements performed and recognition for commitment to quality, technical competency and unbiased, reliable results.
Pioneering green labels
Systemair in India is the first manufacturer to acquire "Green Pro Ecolabel" for its products.
GEN accredits this program through GENICES - GEN's Internationally Coordinated Ecolabelling System and is in line with UN Environment guidelines on providing product sustainability information.
