TSO-FBasic Diffusers

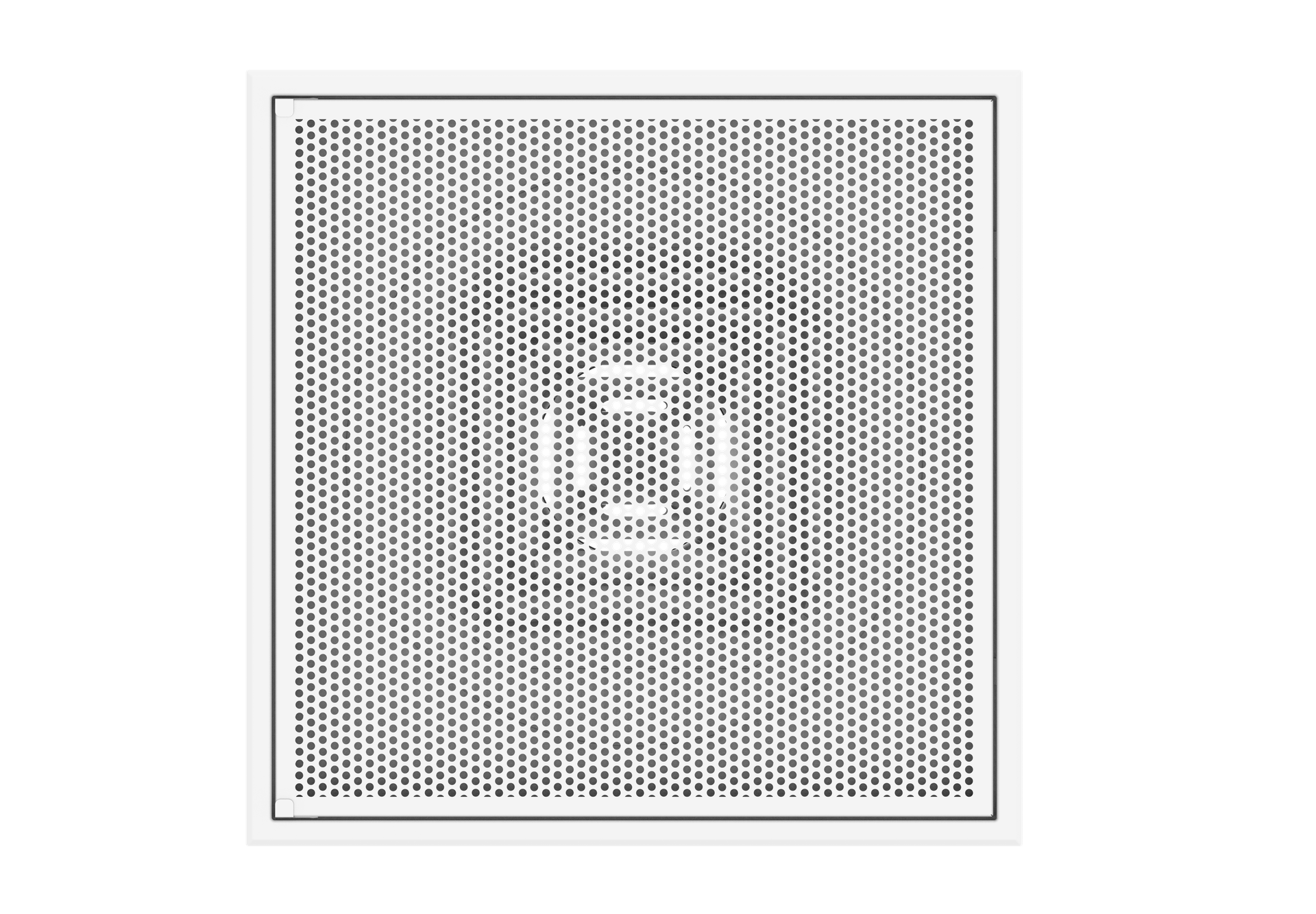

Square perforated diffuser suitable for T-bar suspended ceilings
Simple and safe design
Easy installation
Air supply and extract
Galvanised steel construction
Range of applications
The TSO-F square perforated diffuser is designed for a variety of applications in offices, schools, medical premises, shops, halls, and corridors.
Simple design
The TSO-F square perforated diffuser has a safe and simple design to facilitate easy installation and handling.
Well-balanced
The TSO-F provides a well-balanced ratio between airflow capacity, pressure drop, and sound generation.

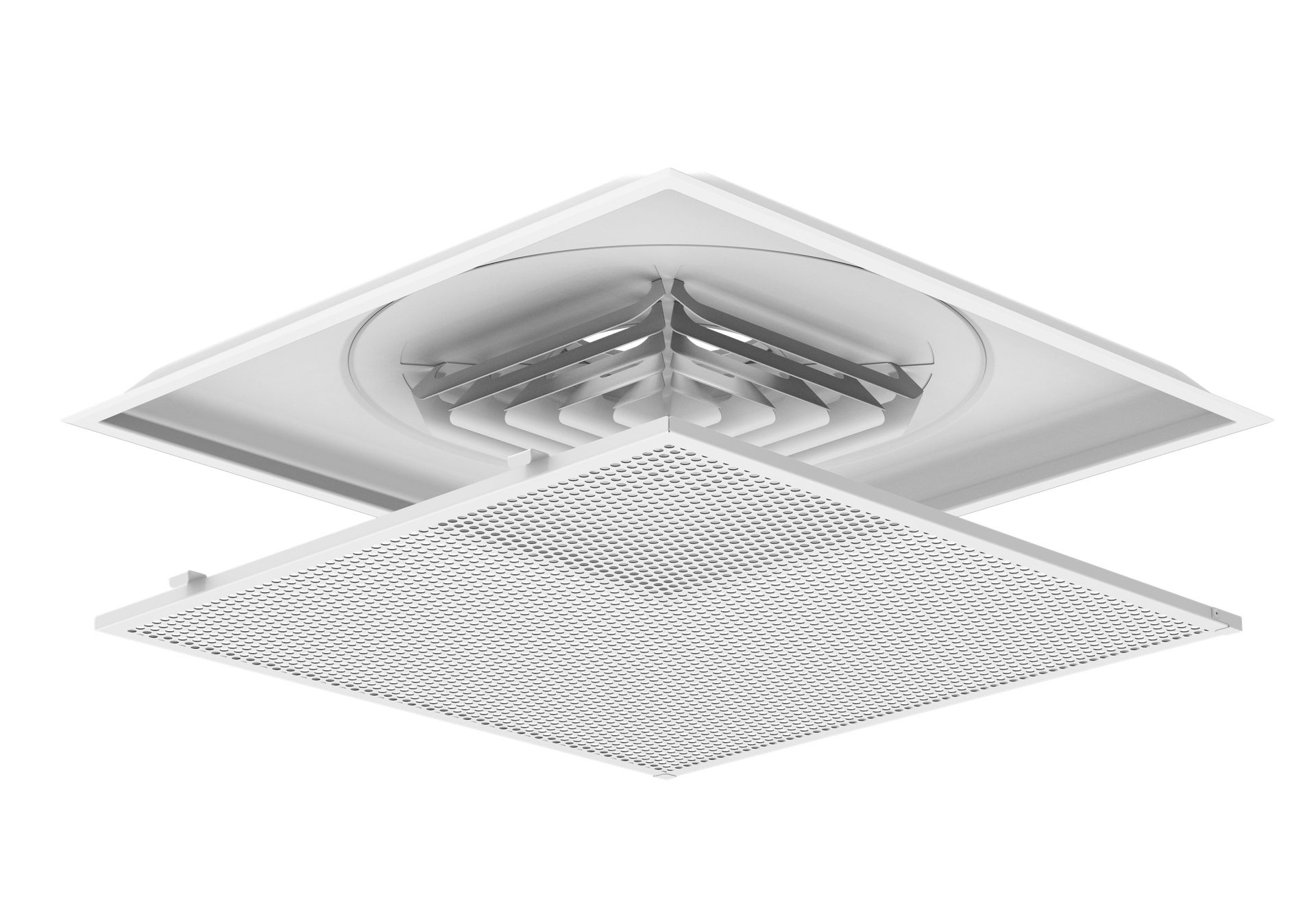

TSO-F is a high-performance, square perforated diffuser designed for installation in T-bar suspended ceilings. Available in different sizes, it is principally designed for air supply and can also be used for air extraction. It has a wide range of applications, including in offices, schools, medical premises, shops, halls, and corridors. The simple and safe design of the diffuser allows easy installation and handling and has low installation height requirements.

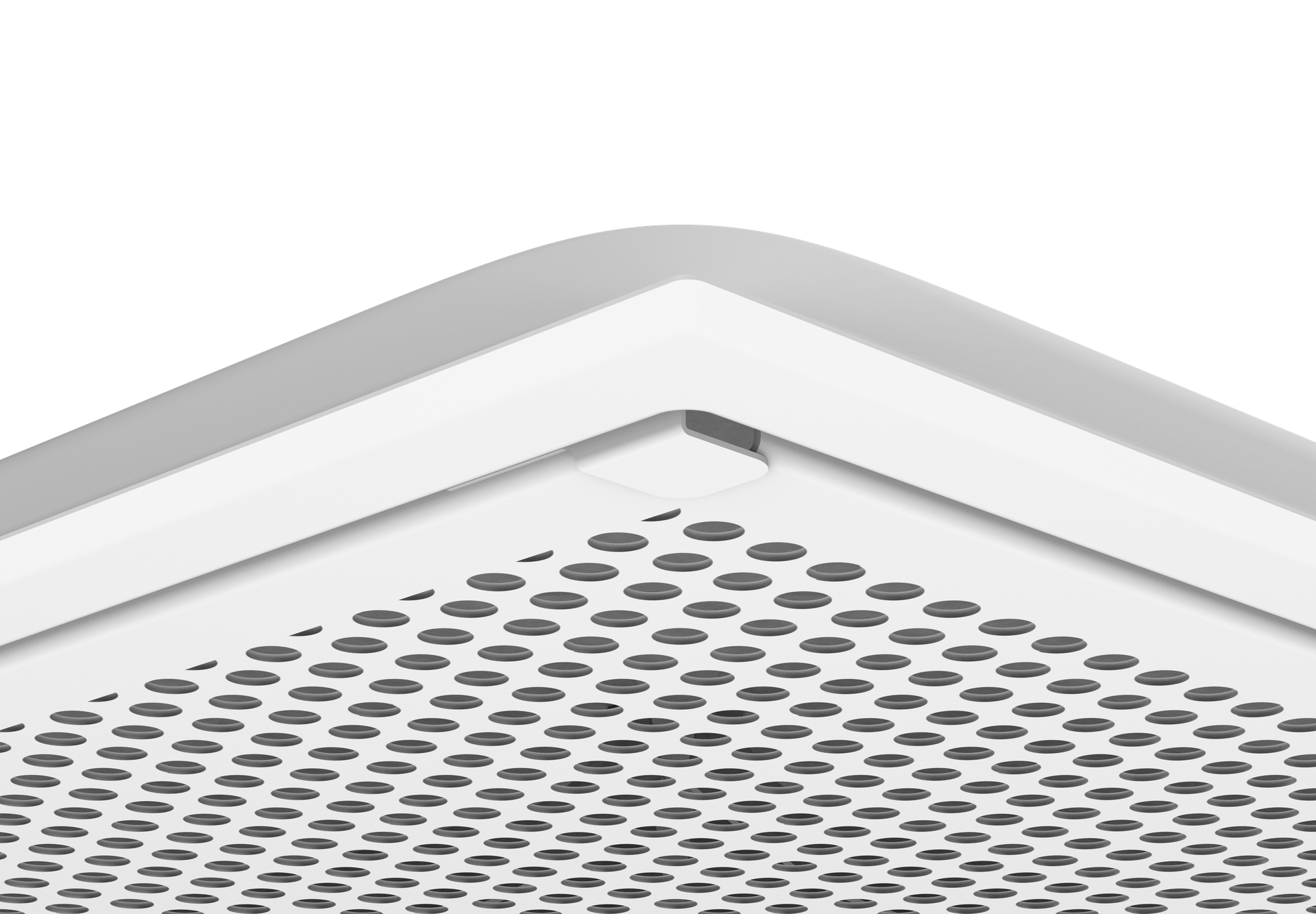

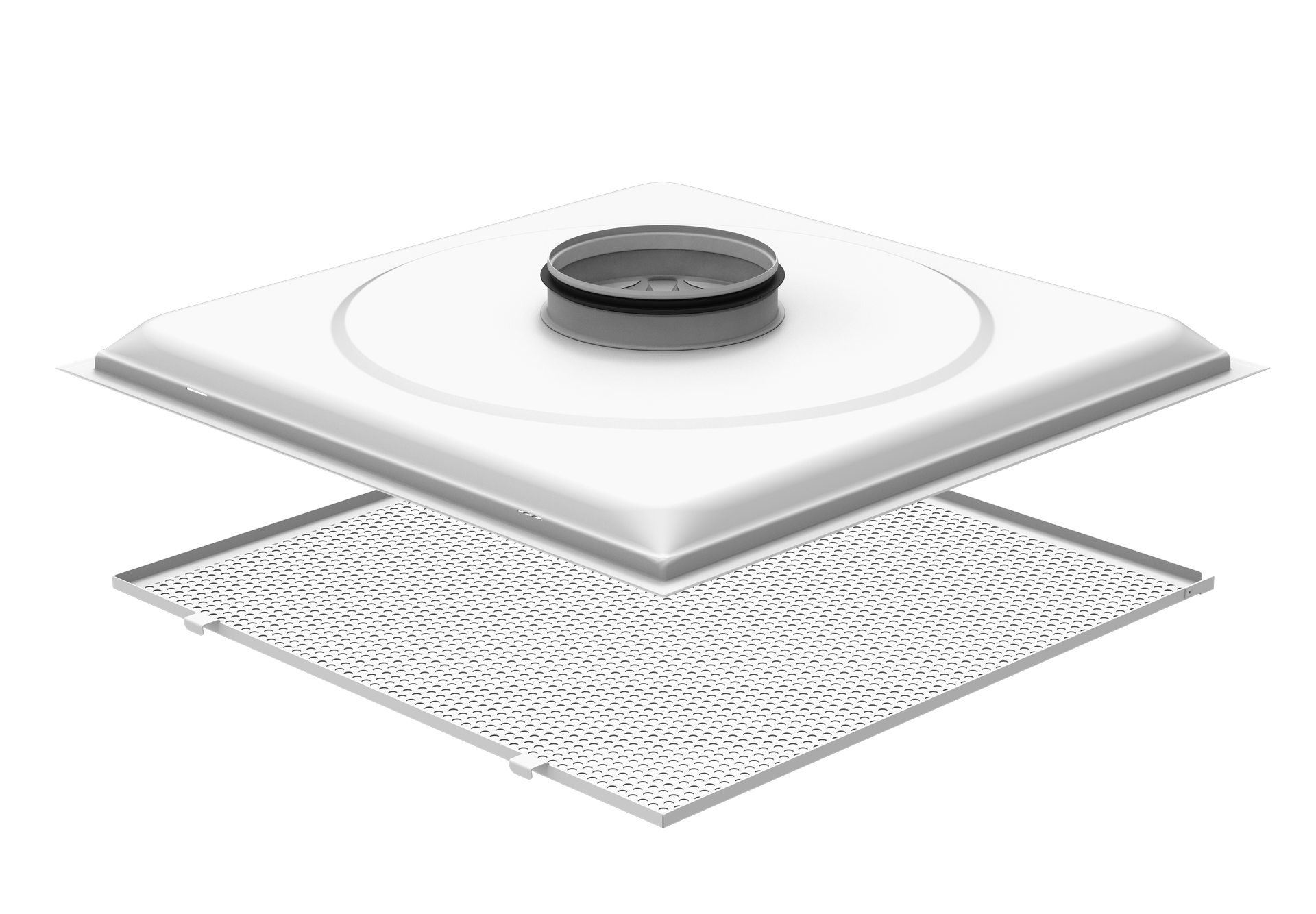

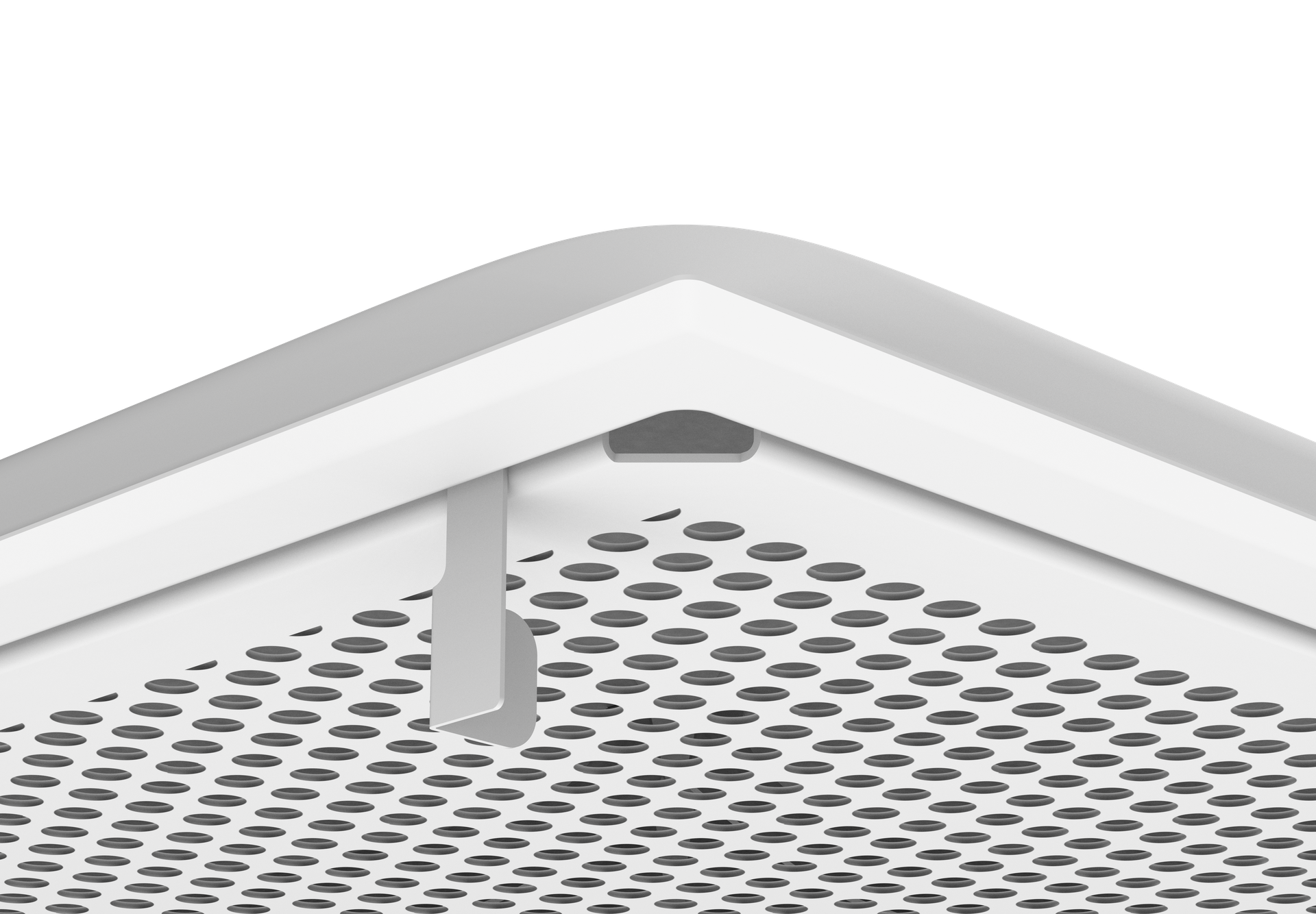

The TSO-F is made from galvanised steel sheet with a powder paint surface finish. It consists of a backing box with a circular duct connection equipped with a rubber gasket and perforated front plate. The front is affixed with simple hinges on one side and can be opened or detached easily without tools. It provides a well-balanced ratio between airflow capacity, pressure drop, and sound generation. The TSO-F is also operable without a plenum box, connected directly to a duct bend or tee.
Your order, your style!
Our product is customizable to your preferences, allowing you to order it with any RAL code surface finish to perfectly match your aesthetic vision
