Heat. Smoke. Pollution. Gone!AXCAxial Fans
Axial fans keep the air fresh, clean, and well-ventilated. In any application.
Safe. Powerful. Compact. Quiet. And saves energy.
No matter the application — indoor or outdoor, industrial or commercial — Axial fans quickly and efficiently remove hot, smoky, polluted, and hazardous air. For safe, healthy, and well-ventilated environments all year long.
Powerful extraction. Guaranteed.
Axial fans process air volumes of up to 500,000 m³/h and static pressure of up to 2,800 Pa.
Guaranteeing you clean, fresh air – anywhere.
)
SG
Protection guard
ESD-F
Inlet cone
RSA(F)
Silencer
EV-AR/AXC
Flexible connection
MPR
Mounting ring
MP
Mounting brackets (90°)
LRK
Air operated damper
GFL-AR/AXC
Counterflange
ABS-AXC
Outlet cowl
AXC
Axial fan
MFA-AR/AXC
Mounting feet
Flexible and versatile
There are multiple lines of axial fans to support a wide range of industrial and commercial applications.
Explore them all:
AXC
| Size (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Size (mm) | 315–1600 | 315–1250 | 315–1600 | 315–1250 | 315–1250 | 315–1250 | 315–1250 | 250–800 | 250–800 |
| Version | |||||||||
Version | Standard | Garage | Smoke extraction | Smoke extraction - Garage | Smoke extraction 400°C | Smoke extraction, 400°C - Garage | ATEX certified | Bifurcated casing | Bifurcated casing - ATEX certified |
| Airflow, up to m³/h | |||||||||
Airflow, up to m³/h | 215000 | 215000 | 200 000 | 215000 | 170000 | 160000 | 180000 | 21000 | 21000 |
| Pressure | |||||||||
Pressure | ++ | +++ | ++ | +++ | ++ | +++ | ++ | ++ | ++ |
| Continuous operation up to 55°C | |||||||||
Continuous operation up to 55°C | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Continuous operation up to 200°C | |||||||||
Continuous operation up to 200°C | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ |
| Smoke extraction 300°C/2 h | |||||||||
Smoke extraction 300°C/2 h | ✗ | ✗ | ✓ | ✓ | ✓ | ✓ | ✗ | ✗ | ✗ |
| Smoke extraction 400°C/2 h | |||||||||
Smoke extraction 400°C/2 h | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ | ✗ | ✗ | ✗ |
| Explosion proof | |||||||||
Explosion proof | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✓ |
| Garage version - series mounting | |||||||||
Garage version - series mounting | ✗ | ✓ | ✗ | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ |
| Motor outside airflow | |||||||||
Motor outside airflow | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ |
?_=1698902648922)
?_=1703518732147)
?_=1703518677763)
?_=1702771295613)
?_=1701635567156)
?_=1701635605325)
?_=1701635557656)
?_=1703004187927)
?_=1702771300970)

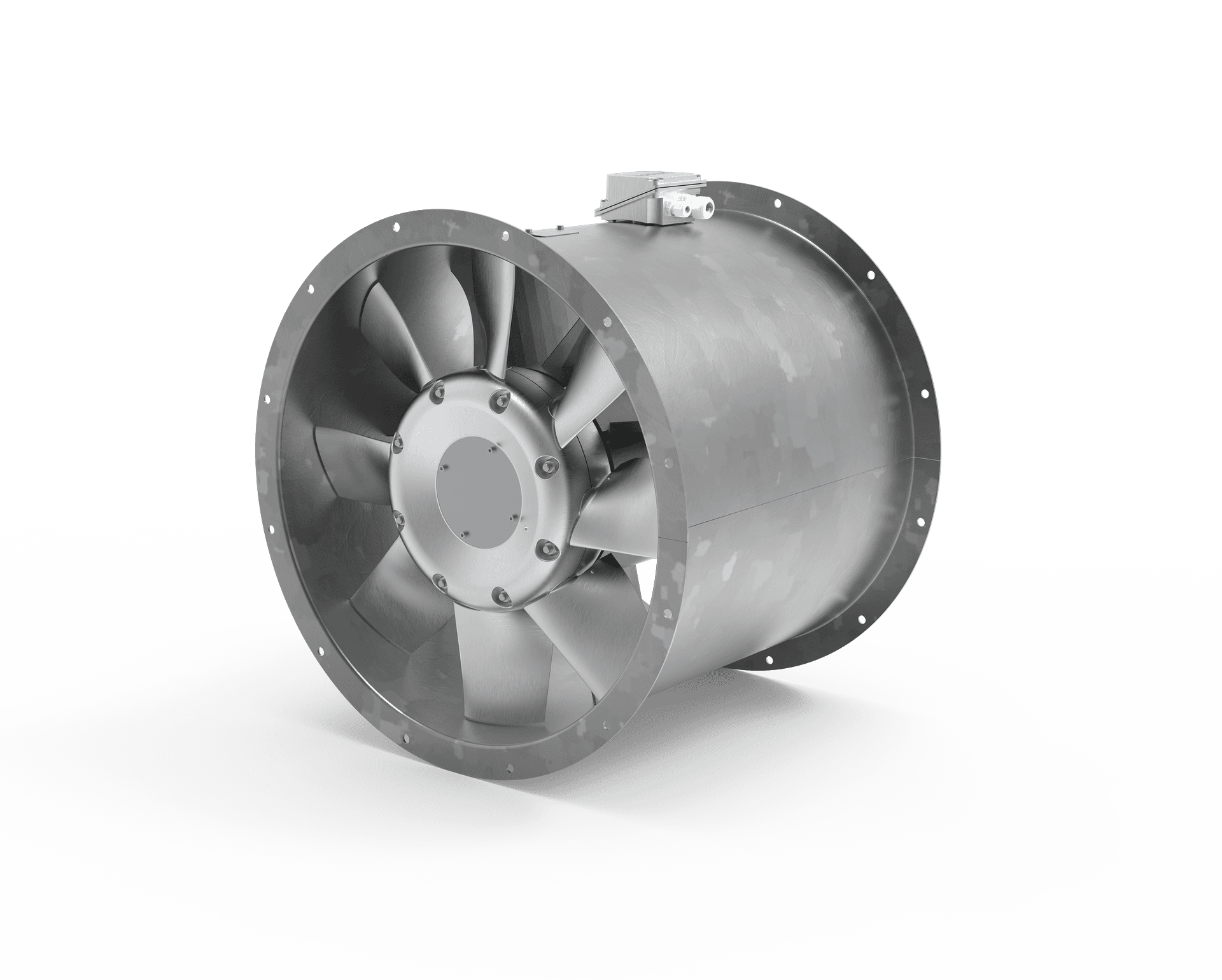

AXC
Axial Fans · Medium pressure axial fan
Configurable in the Axial Fans Configurator
Performance tested
)
AXC-EX
Axial Fans · Explosion proof axial fan for special atmospheres
ATEX certified
Configurable in the Axial Fans Configurator
Performance tested
AXC(B)
Axial Fans · Efficient smoke extraction axial fan
Certified for 300°C/120min
Installation inside or outside of the fire zone
Configurable in the Axial Fans Configurator
)
AXC(B) - G
Axial Fans · High pressure smoke extraction axial fan for garages and industrial applications
High pressure
Certified for 300°C/120min
Installation inside or outside of the fire zone
Two fans mounted in series
Configurable in the Axial Fans Configurator
AXCBF
Axial Fans · Bifurcated axial fan for high temperature extraction
Up to 200°C
Bifurcated casing
Performance tested
)

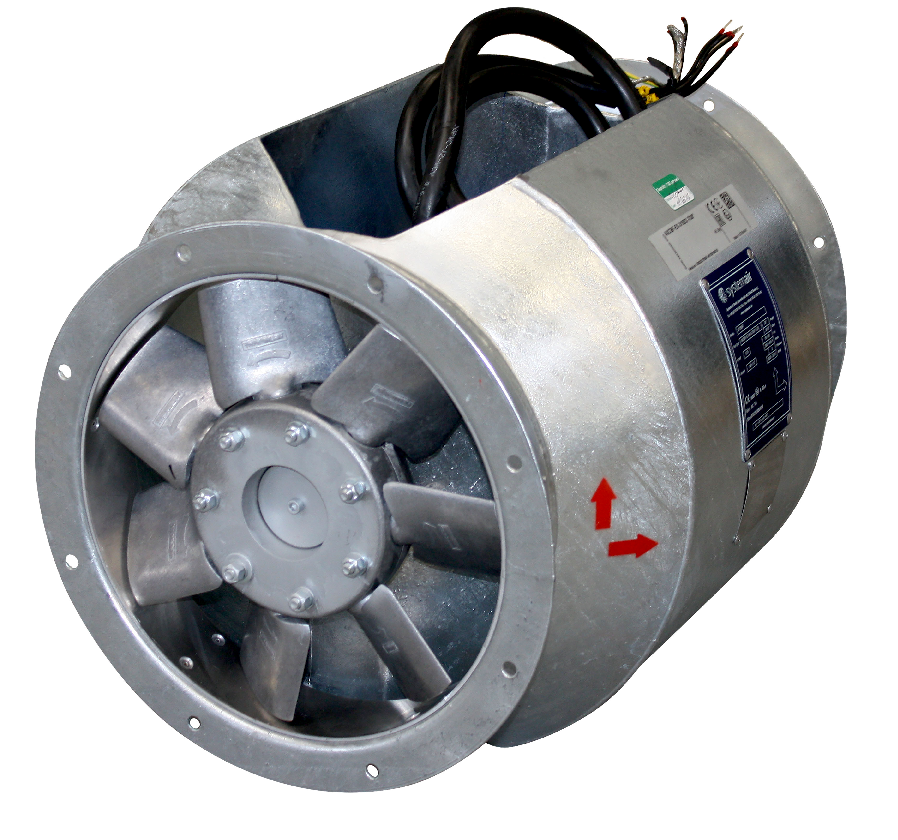

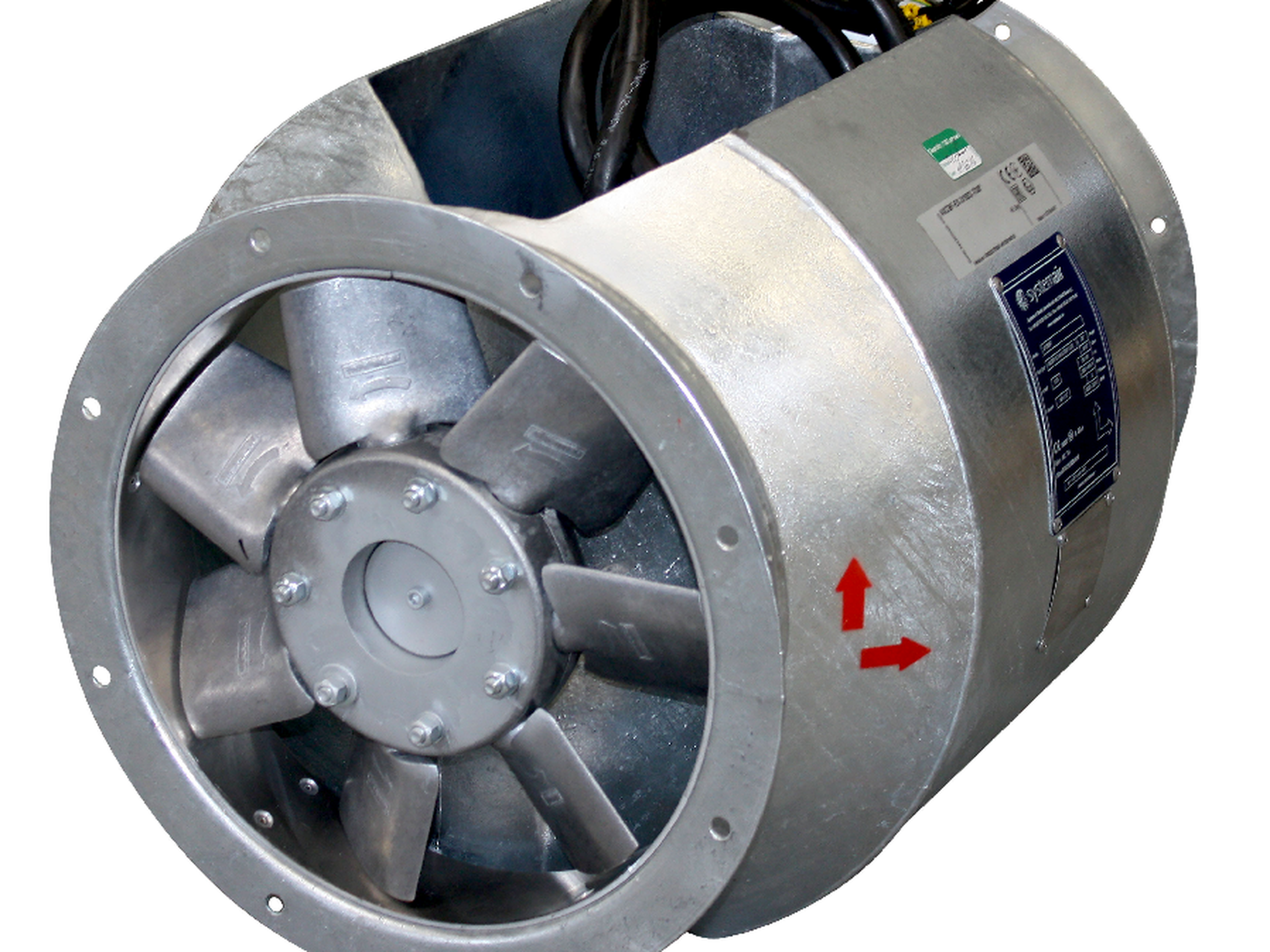

AXCBF-EX
Axial Fans · Bifurcated axial fan for special atmospheres
ATEX certified
Bifurcated casing
Performance tested

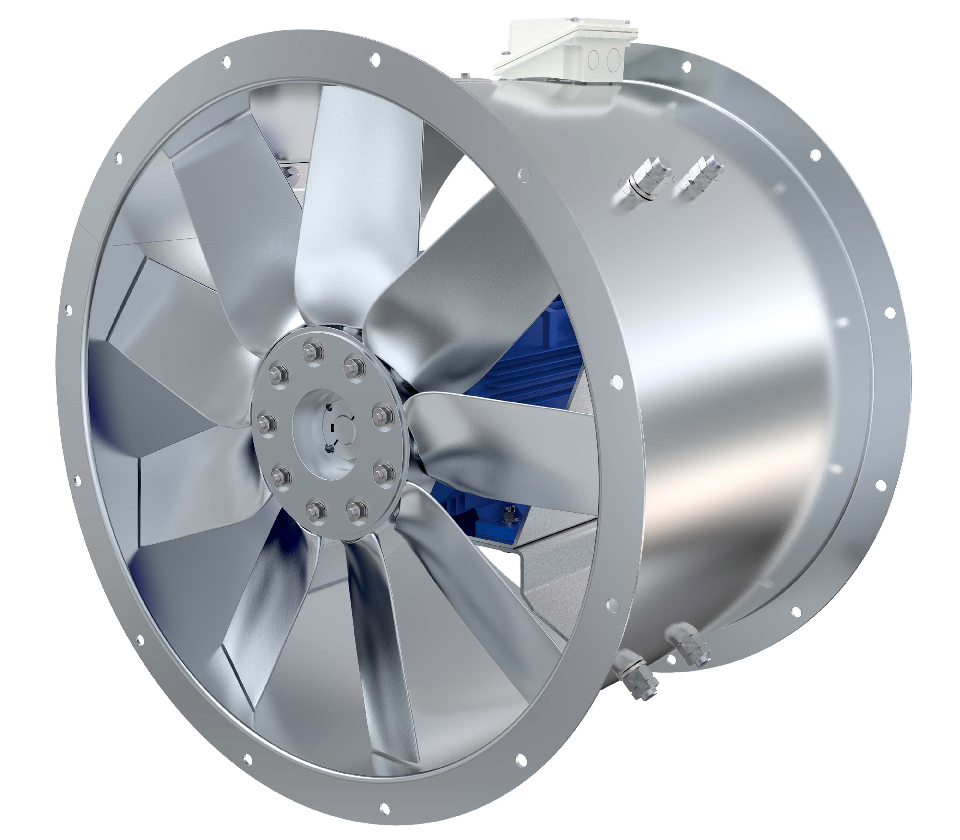

AXC(F)
Axial Fans · Efficient smoke extraction axial fan
Certified for 400°C/120min
Installation inside or outside of the fire zone
Configurable in the Axial Fans Configurator
)

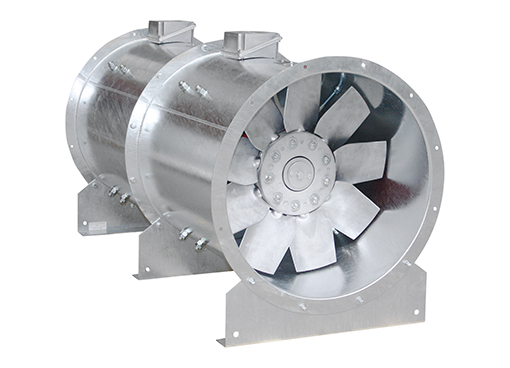

AXC(F) - G
Axial Fans · High pressure smoke extraction axial fan for garages and industrial applications
High pressure
Certified for 400°C/120min
Installation inside or outside of the fire zone
Two fans mounted in series
Configurable in the Axial Fans Configurator
AXC-G
Axial Fans · High pressure axial fan for garages and industrial applications
High pressure
Two fans mounted in series
Configurable in the Axial Fans Configurator
?_=1712987127990)
AXC-H
Axial Fans
Find the right Axial fan for your project
Use the Systemair Configurator to help you configure the most suitable Axial fan for your project.
And best of all – you can download all data and documentation before you place your order.
Unmatched energy efficiency
Axial fans are designed to work at a high performance while saving as much energy as possible. No matter where they’re installed.
Built to last
With sturdy galvanised steel casing and high-resistant aluminium alloy impellers, Axial fans are built to operate at their best for years after installation.
Yes, they’re quiet
Fans don’t need to make noise to do their job. Axial fans’ impeller blades have an efficient aerodynamic profile for high extraction efficiency with minimal noise.
Safe and healthy
Axial fans are built and tested in line with multiple ISO, DIN, EN and AMCA standards. Ensuring your fans will keep the air safe and healthy – just as they’re supposed to.
Installation your way
Axial fans can be installed in multiple different positions with free inlet/outlet or ducted inlet/outlet. Giving you maximum flexibility in installation.
