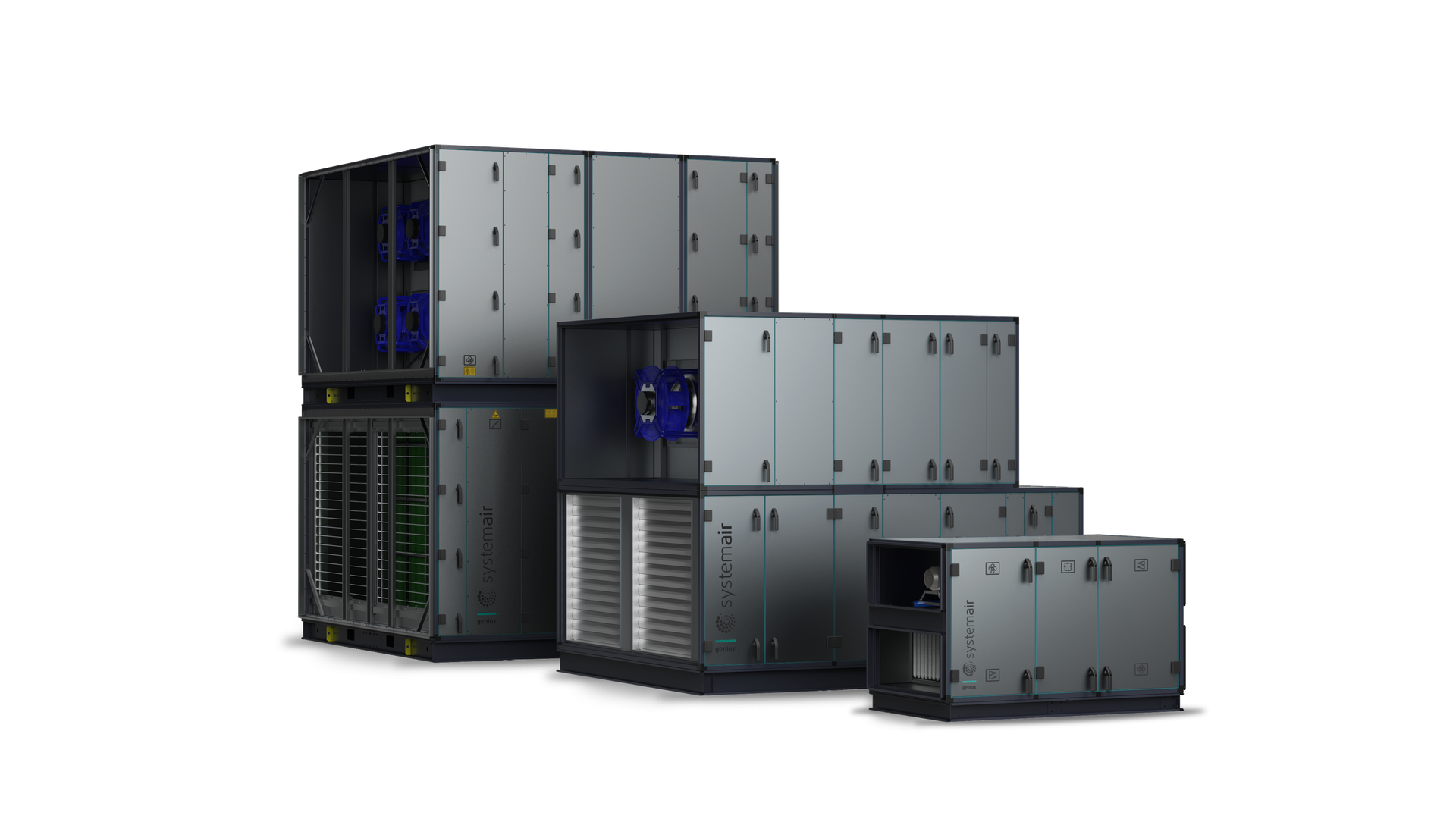

High flexibility. Wide application. Intelligent controls. Geniox Air Handling Units

Geniox is a fully customizable, high-quality, modular air handling unit offering the ultimate flexibility to suit every project.

  • Geniox units can handle airflows from 440 to 65,000 CFM

  • Easy to configure, control and operate

  • Minimum energy use and durable design

  • #HygienicByDesign options available for the entire range

  • Systemair Access Controls system with wireless communication

Freedom of choice

Geniox units can handle airflows from 440 to 65,000 CFM. Their modular design is based on standardized sections that fit seamlessly together – making numerous configurations possible.

Easy configuration

Using the free SystemairCAD design tool, you can optimize your Geniox air handling units to your project requirements and the lowest possible energy consumption – or we can configure it for you.

Minimal energy loss and durable design

The 60 mm thick insulation minimizes heat loss and thermal bridges, allowing energy savings, high operating efficiency and sound reduction.

The handles, hinges, and inspection windows are designed exclusively for and by Systemair, ensuring a long lifetime.

Easy to control and operate

Systemair Access with wireless communication, a complete control system for air handling units, making advanced technology easily accessible. It allows operators to optimize ventilation performance and create the perfect indoor climate.

Using your air handling unit more effectively will help you reduce energy consumption and save money.

The Geniox range of modular air handling units is your ideal partner to ensure energy-efficient ventilation in commercial and industrial applications.

Easily find your optimal solution

Geniox is made with multiple functions and options to meet the needs of every project.

You can trust that each product is optimized to your needs by choosing the best functions according to your project requirements.

Heat Exchangers

  • 3A Enthalpy Wheel

  • Sensible Wheel

  • Sensible Core (Cross Flow)

  • Sensible Core (Counter Flow)

  • Run-around coil heat exchangers


  • Water heating

  • Electrical heating

  • Water and DX cooling

Control system

  • Integrated control system

  • Controller ready to match your own requirements


  • Indoor

  • Outdoor

Systemair Access Control System with wireless communication

Systemair Access with wireless communication, a complete control system for air handling units, making advanced technology easily accessible.

It allows operators to optimize ventilation performance, helping them to create the perfect indoor climate. By operating the air handling unit at maximum efficiency, you reduce energy consumption and operating costs.

  • Choose your preferred device, smartphone, tablet or the handheld control panel, NaviPad.

  • Intuitive, easy-to-navigate menus help you achieve your chosen indoor climate.

  • Plug-and-play concept reduces installation, set-up and commissioning time.

  • Modbus communication to all internal components simplifies wiring, including inside the unit.

  • Cloud service for full monitoring and accessibility, even outside the building.

  • Wireless communication AHU(s) can be connected, configured and controlled via the Access Connect app on your smartphone or tablet.

Good news for ventilation contractors and installers

Geniox with ECO heat exchangers: higher performance in same unit size.

Geniox delivers the energy savings and hygienic performance excellence that you expect of Systemair.

Want to learn more?

  • High performance casing for minimal energy loss.

  • Thermal break casing design

  • Double wall sandwich panel with 2.4” mineral wool insulation

  • Minimized air leakage rate with a complex gasket design (< 1% @ +/- 8” w.g. ASHRAE 111 SMACNA Class 6)

  • < L/240 @ +/- 8 in. w.g. panel and door deflection


Aerodynamically profiled blades and best in class low leakage. Tightness class 1A (AMCA 500-D).

Fans and Motors

Various types of fans ensure your selection of the most energy-efficient system: EC motor, AC motor, or multiple fans.

Energy recovery

High quality and energy efficient exchangers are available: 3A Wheel (Sensible, Enthalpy) Sensible Core (Cross Flow), Sensible Core (Counter Flow) and run-around coil heat exchangers.

Control System

Fully tested preconfigured control. BMS communication configured via control panel; BACnet MS/TP. Geniox can be delivered without control system or installed with your 3rd party controls.

Service and maintenance
  • All panels, doors and openings have easy access for cleaning and service.

  • The windows have been designed exclusively for Systemair and provide a large area for easy inspection.

  • Pleated Panel 30/30 MERV 8-13

  • Bag Multi-Pocket MERV 9-14

  • Deltri+ Virucidal Bag

  • Metal Filter

  • Carbon Filter


Made of Magnelis ZM310. Elimination of thermal bridges due to separation between inner skin and outer skin with a plastic gasket on the edges and removing metal-to-metal contact.
