GEO heat exchangerGeothermal Systems

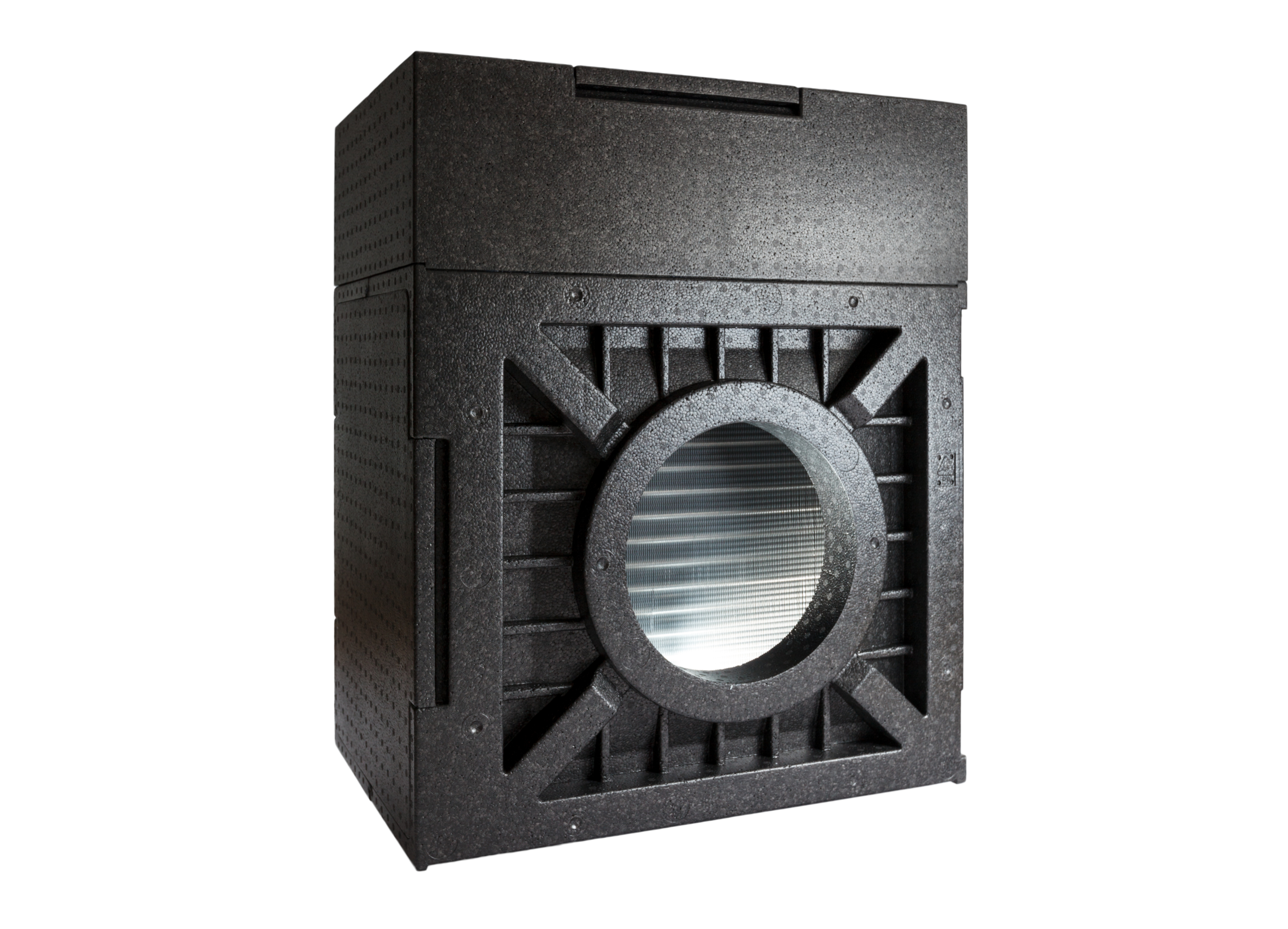

The GEO is a geothermal heat exchanger that can be used as both a preheating and cooling coil. During the winter months, the cold air outside can be preheated. During the summer, it provides effective cooling of the hot outside air. As the respective temperatures are obtained directly from the surrounding earth, optimum energy efficiency can be achieved. The GEO geothermal heat exchanger can be connected to a SAVE control system. This allows for the register to be effectively managed via a user-friendly interface.

A G4 (Coarse 70 %) filter is integrated into the unit. The filter position can be changed to allow for flexible use as a left/right version. The housing is made of expanded polypropylene (EPP). The GEO can achieve up to 3,83 kW heat output with 20 W of energy. It is combinable with air handling units up to 500 m³/h. The thin pipe (DN32) facilitates easy installation. The GEO geothermal heat exchanger increases the efficiency of the heat recovery unit.
