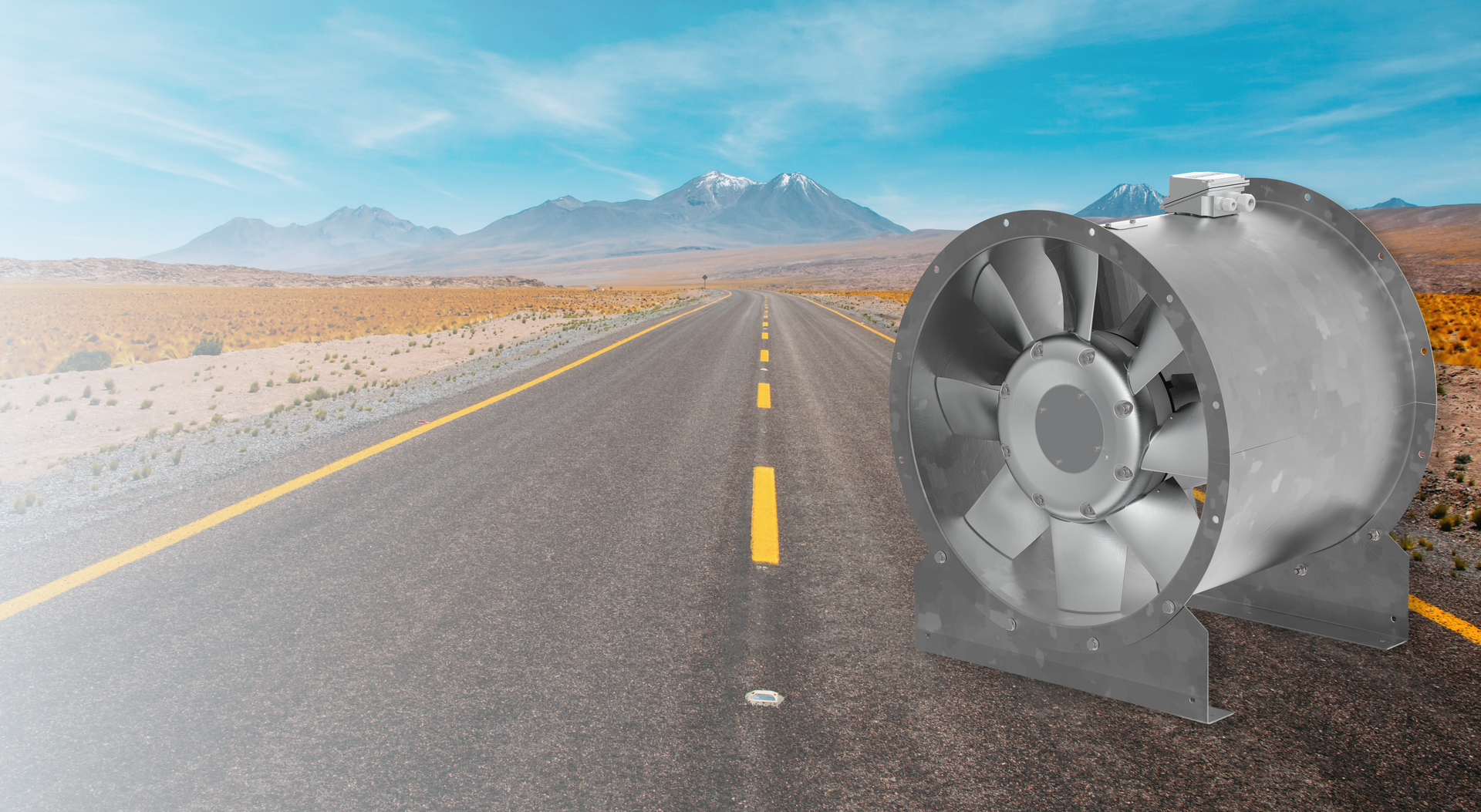

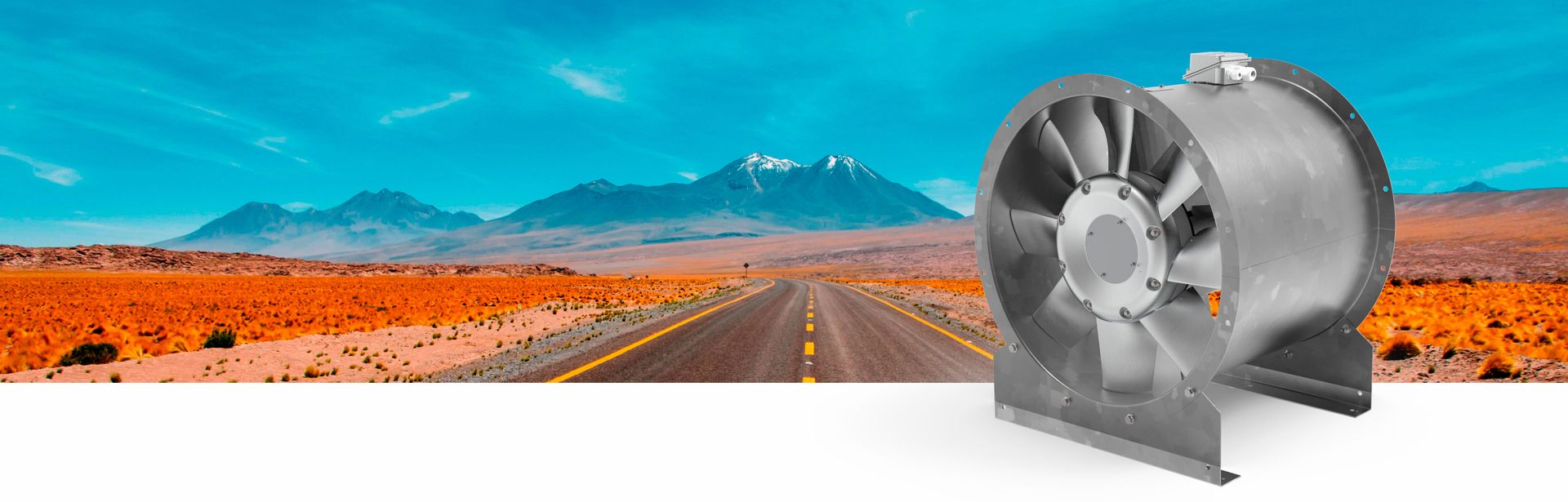

AXC-E
Available in sizes 400, 500 and 630
Motors up to 11 kW
Ready for Ecodesign regulation 2026
Can be installed in any position
Wide range of accessories
Efficiency
Aerodynamically optimised: excellent efficiency over a wide range of the characteristic curves.
Reduced operating costs through high-performance impeller design.
Smaller motors achieve the same operating points, allowing savings on frequency converter, control cabinets, cabling and other accessories.
Design
Thanks to its robust design with hot-dip galvanised casing, the AXC-E is also suitable for demanding Industrial applications.
The compact design reduces the required space.
Can easily be combined with the large range of Systemair accessories portfolio.
Performance
A wide range of operating points is available, even for high pressures and large air volumes.
Performance with versatile configuration options: 50 and 60 Hz as well as 2 and 4-pole motor.
Sound
Low noise levels facilitate meeting the customer specifications and protect the environment.
Up to 7 dB lower sound level.
Excellence in all areas.
And beyond.
)
Triple savings - energy, cost and space
Space saving
The compact design minimises space requirements, enabling flexible installation even in space-constrained environments.
Cost saving
Cost-efficient operation – driven by an advanced motor and a high-performance impeller.
Energy saving
More than 80% efficiency – ensured by an aerodynamically optimised design across a wide operating range.
)

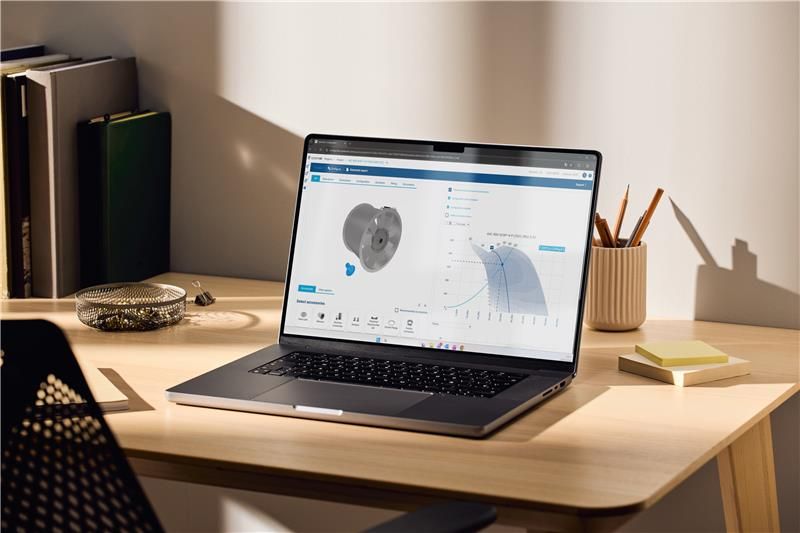

Choose AXC-E in our axial configurator
Configure customised axial fans in just a few steps to match your customer’s demands.
Application
The AXC-E provides effective extraction in operating temperatures up to 55°C continuously for various applications.
Performance
The fan can be configured to suit the individual operating point. Therefore, the pitch angle is adjusted in the factory. This provides a wide range of performance and high flexibility in the selection. A guide vane is integrated for higher pressure and efficiency.
Sturdy and dependable design
Corrosion-proof aluminum impellers, IE3 high-efficiency motors and a hot-dip galvanized steel casing ensure high quality and a long life time.
Tested according to ISO 13350 and AMCA 250 & 300
The AXC axial fans have been performance tested in accordance with ISO 13350 and AMCA 250 & 300 standards on the Systemair or AMCA fan test rig. To select AMCA certified fans check the axial fan configurator.
Flexibility
On request AXC fans can be customized with the following options:
Wide range of accessories
Various coating colors
Special motor versions e.g. up to 100°C, with corrosion protection C5 or for other voltages
FAT for projects
Different positions for the terminal boxes
X-ray tested blades and hubs
Features
Construction
The casing is made from hot-dip galvanised steel according to ISO 1461 with pre-drilled flanges. The terminal box with IP 65 is mounted outside on the casing.
Impeller
The impellers are made of aluminum and are dynamically balanced in accordance with ISO 21940-11, balancing quality G6,3, and vibration limits according to ISO 14694.
Motor
Standard models are driven by three-phase AC motors with efficiency IE3 suitable for 50Hz and optionally for 60Hz.
Motor protection
The motors are equipped with PTC thermistors for motor protection.
Control
Motors can be speed controlled by frequency inverter between 10 and 60 Hz.
Installation
The AXC fans can be installed in different positions indoor and outdoor (for more information see the manual).
Recommended accessories: flexible connections, vibration dampers, mounting feet.
