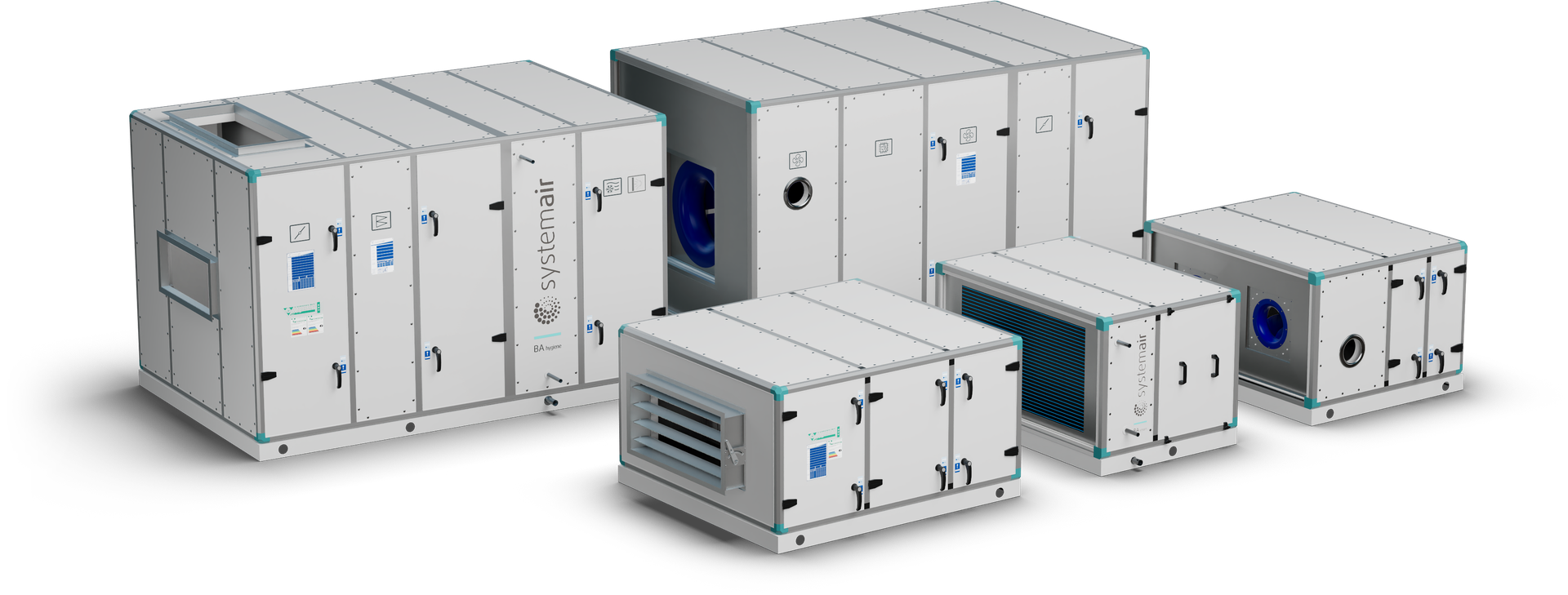

BA Air Handling Units

Ultimate flexibility. Trustworthy performance.BA Air Handling Units

Easy to customise.

BA units come as standardised, modular sections, designed to fit together seamlessly.

So you can quickly create custom systems to meet your exact performance, footprint, and energy requirements.

Easy to select.

Select, design and configure your air handling units easily with real-time 3D visualisation of the unit and accessories.

Easy to control.

All BA units are available with preinstalled, preconfigured, and fully integrated control systems. It is a user-friendly system where functions and parameters can be managed with the inbuilt controller or through a building management system.

With full control over all units, it’s easy to optimise their performance, energy savings, and operating costs.

BA Unit, Eurovent-certified modular air handling units suitable for medium or high air pressure systems
BA Unit
Air Handling Units · Eurovent-certified modular air handling units suitable for medium or high air pressure systems
  • BA Units can handle airflows from 1,000 to 17,800 m3/h

  • Modular and robust units designed for medium to high air pressure systems with static pressure up to 2,300 pa

  • Eurovent-certified units ensure trustworthy performance data

  • Available with options for integrated controls for a simple, plug-and-play start-up

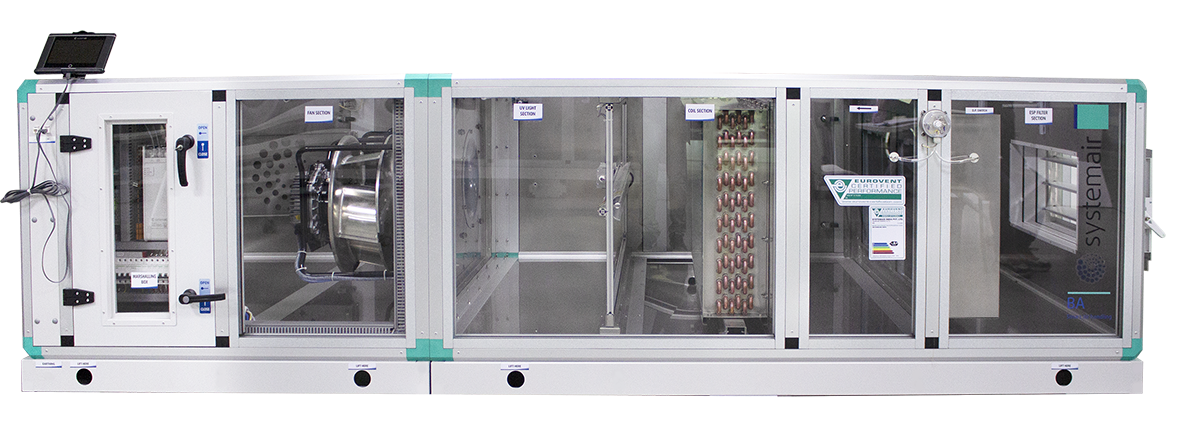

BA Air Handling Unit

The heart of any ventilation system

BA air handling units are designed for any configuration – and any application.

The flexibility makes it possible to optimise the AHU for specific requirements

Supply and extract dampers

Low-leakage extruded aluminium dampers suitable for manual or motorised operations.

Heat transfer coils

Copper tube aluminium finned heat transfer coils available in multiple rows deep and are designed to give certified performance output for heating, cooling and recovery applications.

Base Frame

The base frame is made of galvanised steel with lifting provision

Supply and extract filters

Units are offered with high quality and low pressure drop filters of different particulate efficiency.

EC fan and motors

A wide range of fans and motors can be offered based on the requirement.

  • EC fans

  • Belt-driven DIDW centrifugal FC/BC fans

  • Centrifugal plug fan

  • Motors with IE2/IE3 efficiency

  • PM motor with IE4/IE5 efficiency

  • Low noise with high-efficiency axial fans with PM Motors

Tightness and corners

Framework of airtight, elegant and sturdy extruded aluminium hallow profile with polyamide thermal break profile having glass filled nylon corners and spacers.

Control system

Units can be provided with factory-tested control systems for all necessary standard functions and the settings can be easily adjusted to desired operational values.

Inspection doors and handles

Adequate-sized inspection doors are provided in each section fitted with high quality handles.

Sustainable and certified

From design to production, BA Units comply with leading sustainability, performance and energy efficiency standards.

GreenPro EcoLabel



CE Marking

Choose SMART. Get BA.

Systemair Modular AHU with Advanced Reliable Technology

The BA Smart units are available with a pre-installed, preconfigured and fully integrated control system. It is a user-friendly system where functions and parameters can be selected from the inbuilt Human Machine Interface (HMI) of the controller or of the Building Management System.

The operating data, set points, alarms, operating status and time settings are displayed in the controller. The control system is preloaded with design temperature, relative humidity, pressure drops, time settings and control sequence to simplify field commissioning, all of which can be modified according to need.

Inspired by smartphones, the accessible controls enable a seamless user experience within the robust design.

Find the right BA AHU for your project

Use the Systemair BAHU software to help you select the best BA configuration for your project.

And best of all – you can download all data and documentation before you place your order.

World-class production facilities

BA Units are designed and produced in Systemair India, which features an AMCA-accredited laboratory for performing measurements as per AMCA 210 and AMCA 300 standards. The Laboratory consists of a reverberation room and wind tunnel for precise air & sound measurement.

Systemair's AMCA accredited Lab ensures the credibility of measurements performed and recognition for commitment to quality, technical competency and unbiased, reliable results.

.

Pioneering green labels

Systemair in India is the first manufacturer to acquire "Green Pro Ecolabel" for its products.

GEN accredits this program through GENICES - GEN's Internationally Coordinated Ecolabelling System and is in line with UN Environment guidelines on providing product sustainability information.
