NOVA-AGrilles
Adjustable air diffusion grille, for supply or extract air. Ideal for commercial and industrial premises.
Adjustable
Large free area
Low pressure loss & sound
Lightweight
Commercial & Industrial use
Anodized aluminum
Industrial & Commercial use

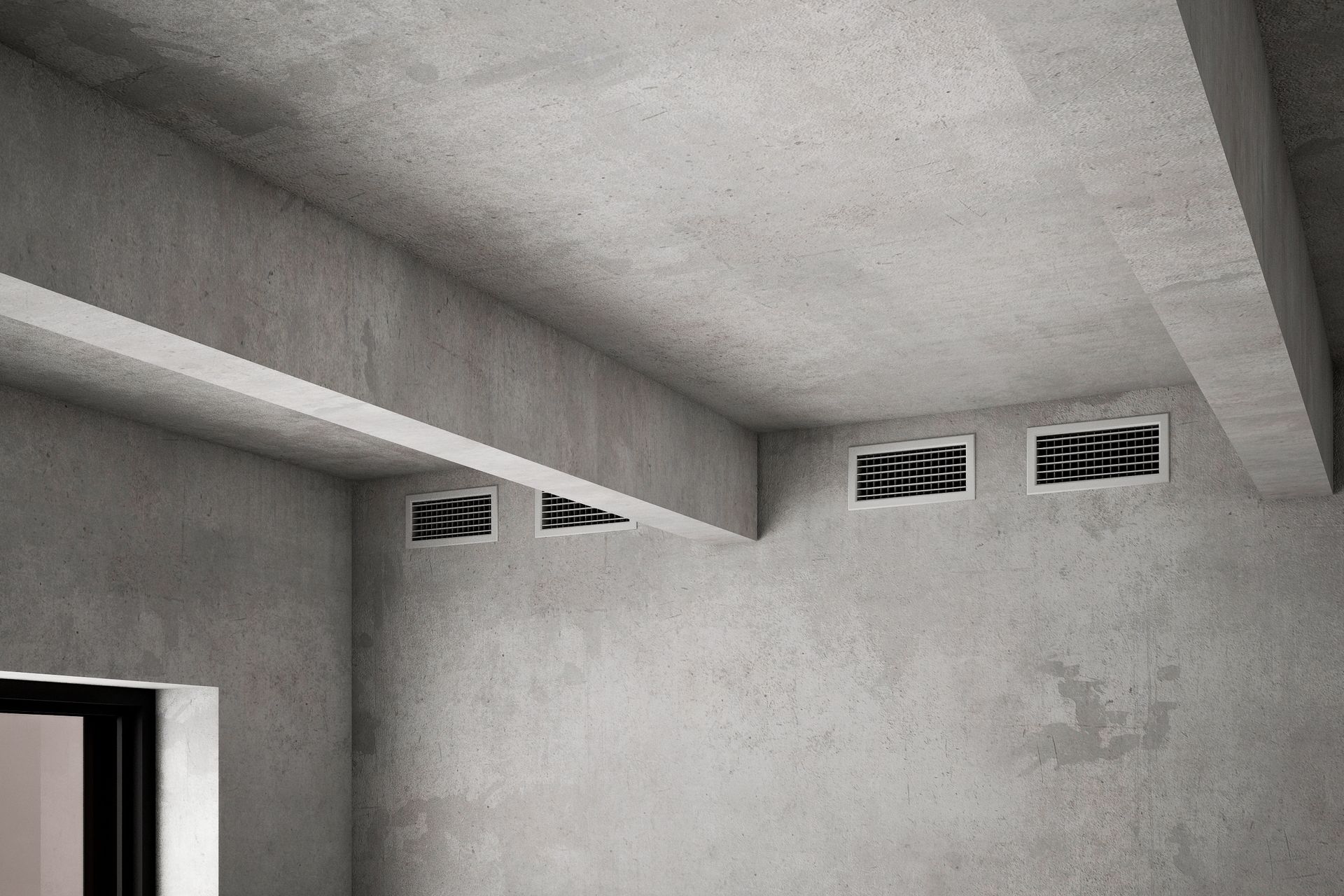

The NOVA-A air diffusion grille is designed for installation in commercial and industrial premises allowing higher air volume exchanges with adjustable deflectors.
Air supply & extraction
The air diffusion grille is intended for air supply or air extraction when it’s installed into rectangular ducts or walls.
Lightweight construction
The NOVA-A air diffusion grille is manufactured from extruded aluminum and has a robust and lightweight construction for fine design lines and decorative appeal. Extruded aluminum deflectors are set in bearings to assure a smooth movement for adjustment of the airflow.
The NOVA-A adjustable air diffusion grille is designed for air supply or extraction in commercial and industrial premises with a higher emphasis on appearance. Available in various sizes, the unit is installed into rectangular ducts or directly onto walls and has an anodized satin finish or powder painted to RAL9003 (signal white) as standard. Other RAL colors are available upon request.
The NOVA-A are single or double deflection as standard. The double deflection grilles have deflectors with perpendicular setting.
The deflector position setting determines the airflow discharge pattern. The grille allows for the air to be directed using adjustable blades in a horizontal, as well as vertical orientation. For a balanced distribution of air through the entire grille, it is recommended to use the R1-NOVA damper or a plenum box.
A range of accessories is available including the R1-NOVA damper and UR-NOVA: Mounting Frame.
Your order, your style!
Our product is customizable to your preferences, allowing you to order it with any RAL code surface finish to perfectly match your aesthetic vision
