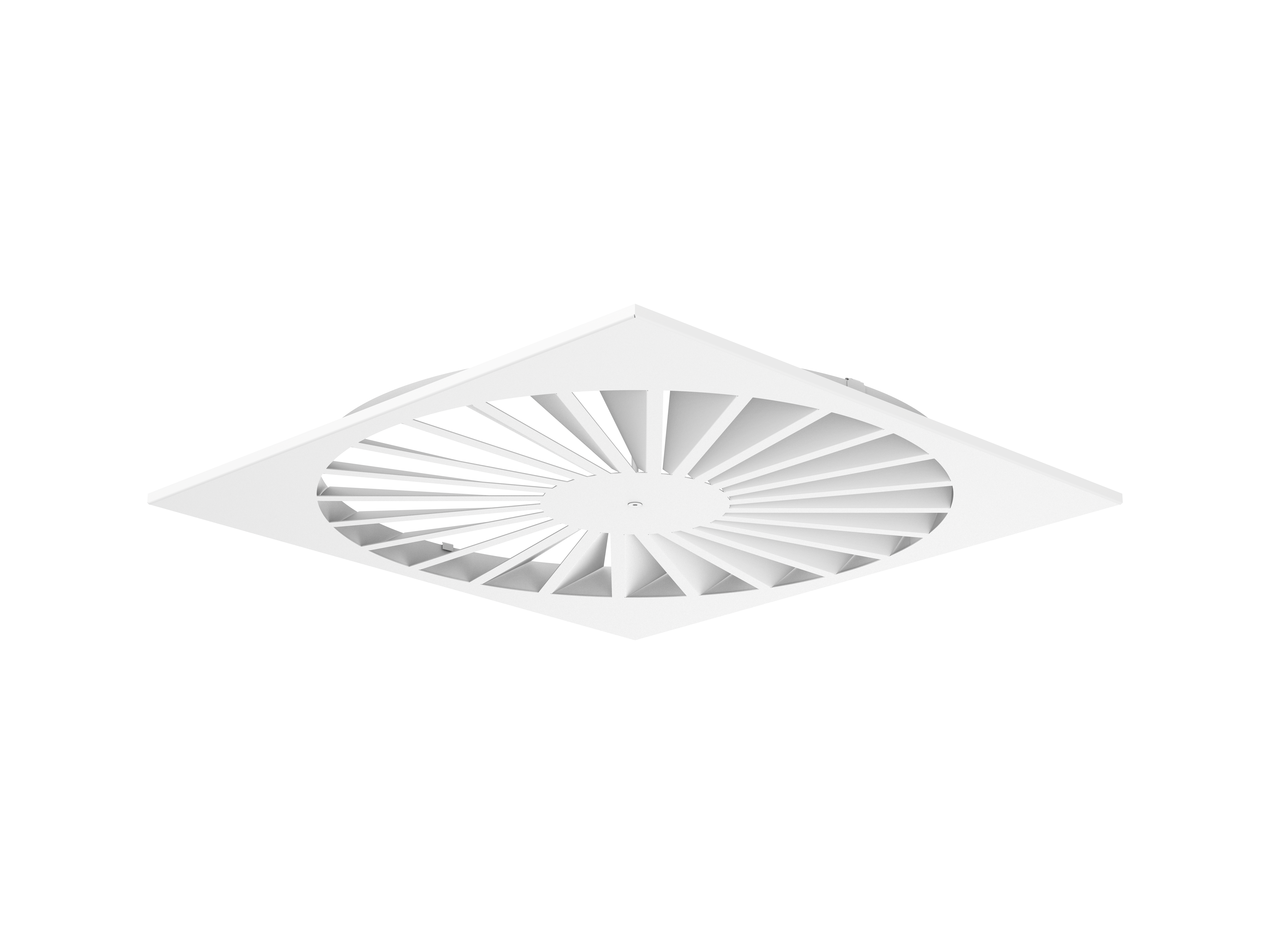

VVKN-A-S Swirl Diffusers
Swirl ceiling diffuser for supplying or extracting air
Simple and safe design, easy installation and handling
Can be used for extracting air with or without deflectors
Variable air discharge patterns by deflectors adjustable from outside without tools
Excellent induction rate also at low air flow volumes
Supply air temperature can vary from -10K to +10K based on the room air temperature
Radially aligned blades
The faces of the VVKN swirl diffuser are fitted with a radially aligned set of variously shaped blades, which guarantees an even distribution of swirl supply air.
Air duct installation
The VVKN swirl diffuser will usually be installed onto an air duct using a plenum box with a horizontal or vertical connection.
Galvanised steel
The diffuser face is made of galvanised steel making it robust and durable.
The VVKN swirl diffuser with fixed blades is designed to provide effective and comfortable air distribution. The diffuser face is supplied with a radially aligned set of blades of various shapes which guarantee an even distribution of swirl supply air into the occupied zone. The VVKN swirl diffuser can be installed onto an air duct using a plenum box with a horizontal or vertical connection by a flexible circular tube or the SPIRO duct. The VVKN can be used for both supplying or extracting air. It can also be used for ventilation, as well as supply cold or warm air.
The diffuser face is made of galvanised steel and has a powder-painted surface. It’s also possible to manufacture the diffuser from stainless steel AISI304 or AISI316. In the centre of the diffuser, there is a screw opening to enable mounting. The mounting consists of installing the plenum box to the ceiling using drawbars and mounting the diffuser face onto the plenum box using a centric screw which is included in the delivery.
Your order, your style!
Our product is customizable to your preferences, allowing you to order it with any RAL code surface finish to perfectly match your aesthetic vision
