    SYSVRF2 AIR EVO A HPVRF Systems

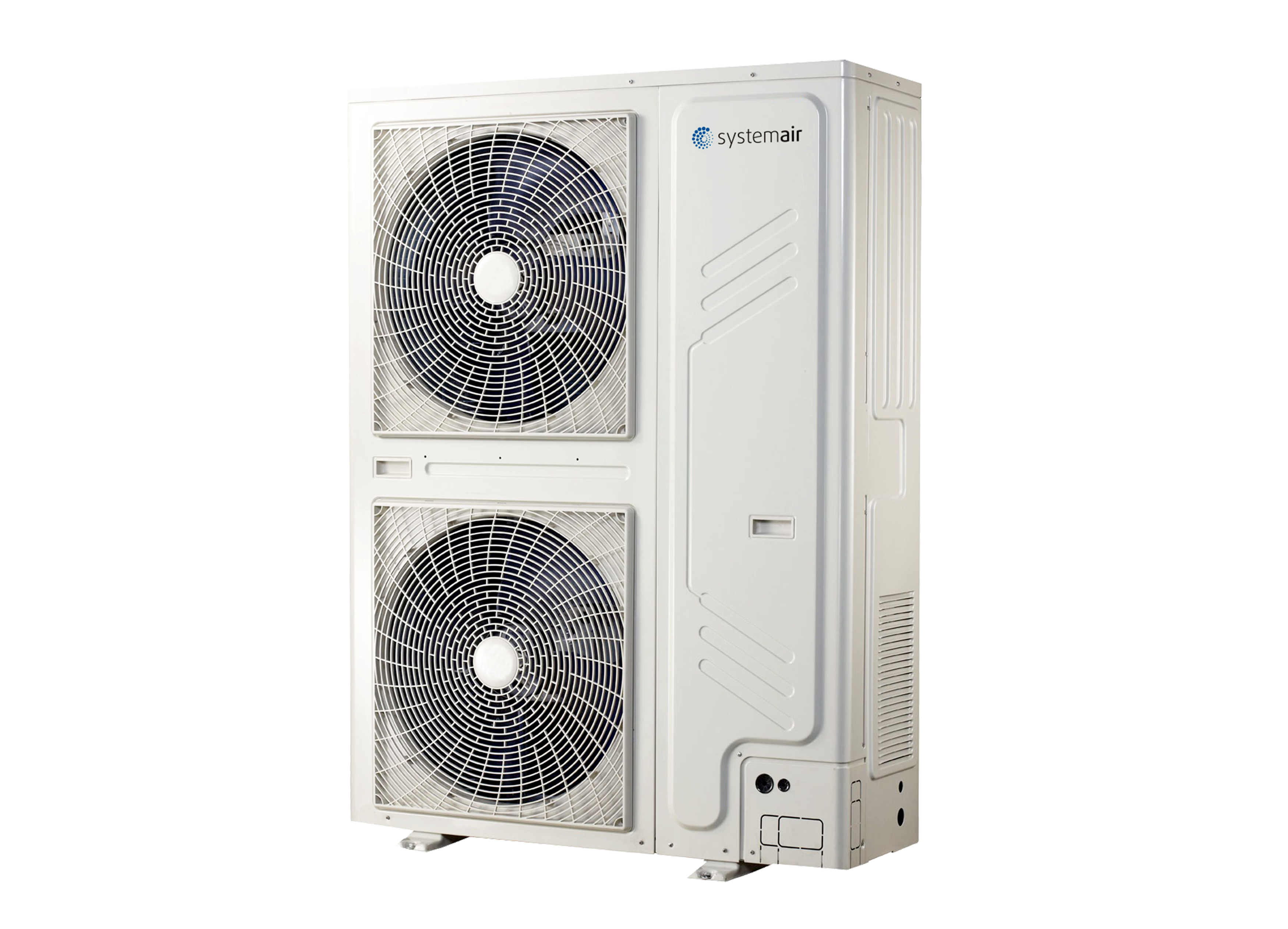

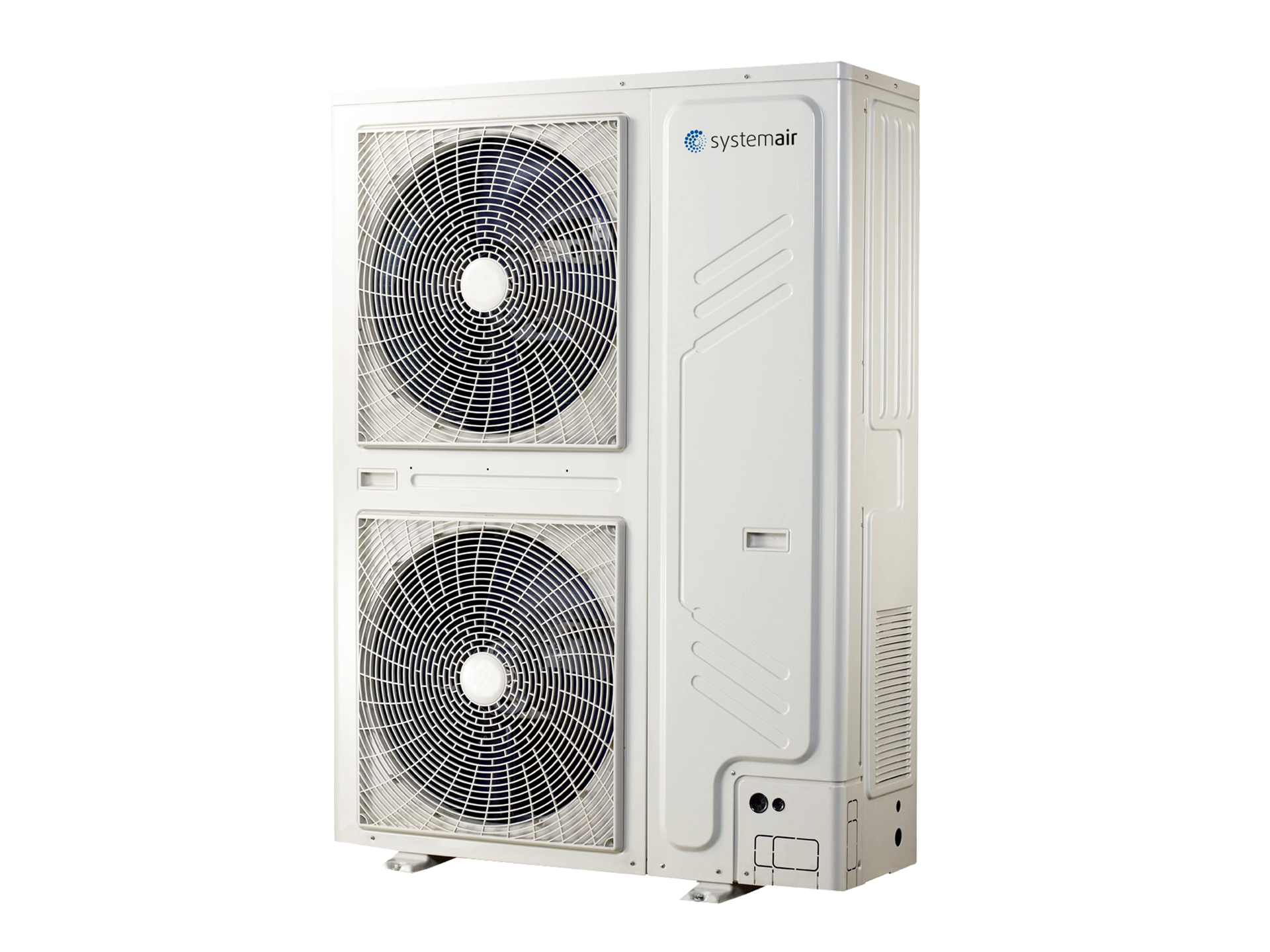

    Mini VRF • 22,4-28,5 kW • R410A Outdoor unit with horizontal air discharge and two fans for reduced space installation

    • Twin-rotary DC Inverter compressor and DC fan motor

    • Hydrophilic Golden Fin coil

    • Maximum 16 indoor units connection

    • Can be combined with AHU control kit

    ‌
    ‌
    ‌

    The SYSVRF2 AIR EVO HP design with horizontal air discharge and two fans allows high cooling/heating capacities while reducing the space required for installation.

    High efficiency at partial load is achieved thanks to the DC Inverter compressor and the DC fan motor which provide wide capacity output and precise temperature control.

    The intelligent defrosting and the precise oil control technology ensure high reliability in any ambient conditions.

    The refrigerant cooling of the electronic board assures safe and stable operation even at very high outdoor temperatures.

    The wide choice of centralized controllers such as touch screen controller, BMS and web access allows the full and remote control of the VRF installation.

    The Auto-addressing function can automatically distribute addresses to indoor units, simplifying VRF system start-up procedure.

    The SYSVRF2 AIR EVO HP outdoor unit can be connected to one or more AHUs with DX-coil thanks to the SYSVRF2 AHU BOX interface kit, available in different cooling capacities.

    ‌
