Fan coil units Serena
Modern design and quiet operation, combined with easy selection and installation. The Serena FCU range ensures optimal indoor comfort with minimal energy consumption.
Overview of range
| Capacity | |||||||
|---|---|---|---|---|---|---|---|
Capacity | 7 kW | 15 kW | 40 kW | 15 kW | 4.9 kW | 3.8 kW | 3.7 kW |
Installation type | |||||||
Installation type | ++++++ | +++ | + | + | +++ | + | + |
Ceiling | |||||||
Ceiling | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ |
Horizontal | |||||||
Horizontal | ✓ | ✓ | ✓ | ✓ | ✓ | ✗ | ✗ |
Vertical | |||||||
Vertical | ✓ | ✗ | ✗ | ✗ | ✓ | ✓ | ✓ |
With casing and diffuser | |||||||
With casing and diffuser | ✓ | ✓ | ✗ | ✗ | ✗ | ✓ | ✓ |
Ductable | |||||||
Ductable | ✓ | ✗ | ✓ | ✓ | ✓ | ✗ | ✗ |
| Airflow | |||||||
Airflow | 1500 m3/hr | 2480 m3/hr | 7400 m3/hr | 2980 m3/hr | 549 m3/hr | 600 m3/hr | 700 m3/hr |
| Available Static Pressure | |||||||
Available Static Pressure | 50 Pa | 250 Pa | 80 Pa | 250 Pa | |||
| Fan Motor | |||||||
Fan Motor | AC or EC | AC or EC | AC or EC | AC or EC | EC | EC | AC or EC |
| Configuration | |||||||
Configuration | 2 or 4 pipe | 2 or 4 pipe | 2 or 4 pipe | 2 or 4 pipe | 2 or 4 pipe | 2 pipe | 2 pipe |
| Valves | |||||||
Valves | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Controls | |||||||
Controls | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
)
)
)
)
)
)
)
Serena L
Ducted Fan Coil Units (high static pressure)
Cooling & Heating capacity from 4.2 to 30 kW
Airflow from 790 to 7 100 m3/h
Static pressure up to 250 Pa
AC or EC fans
Highly customizable
Quiet operation at low speed
Ease of installation and maintenance
Precise and complete selection on AC SELECT

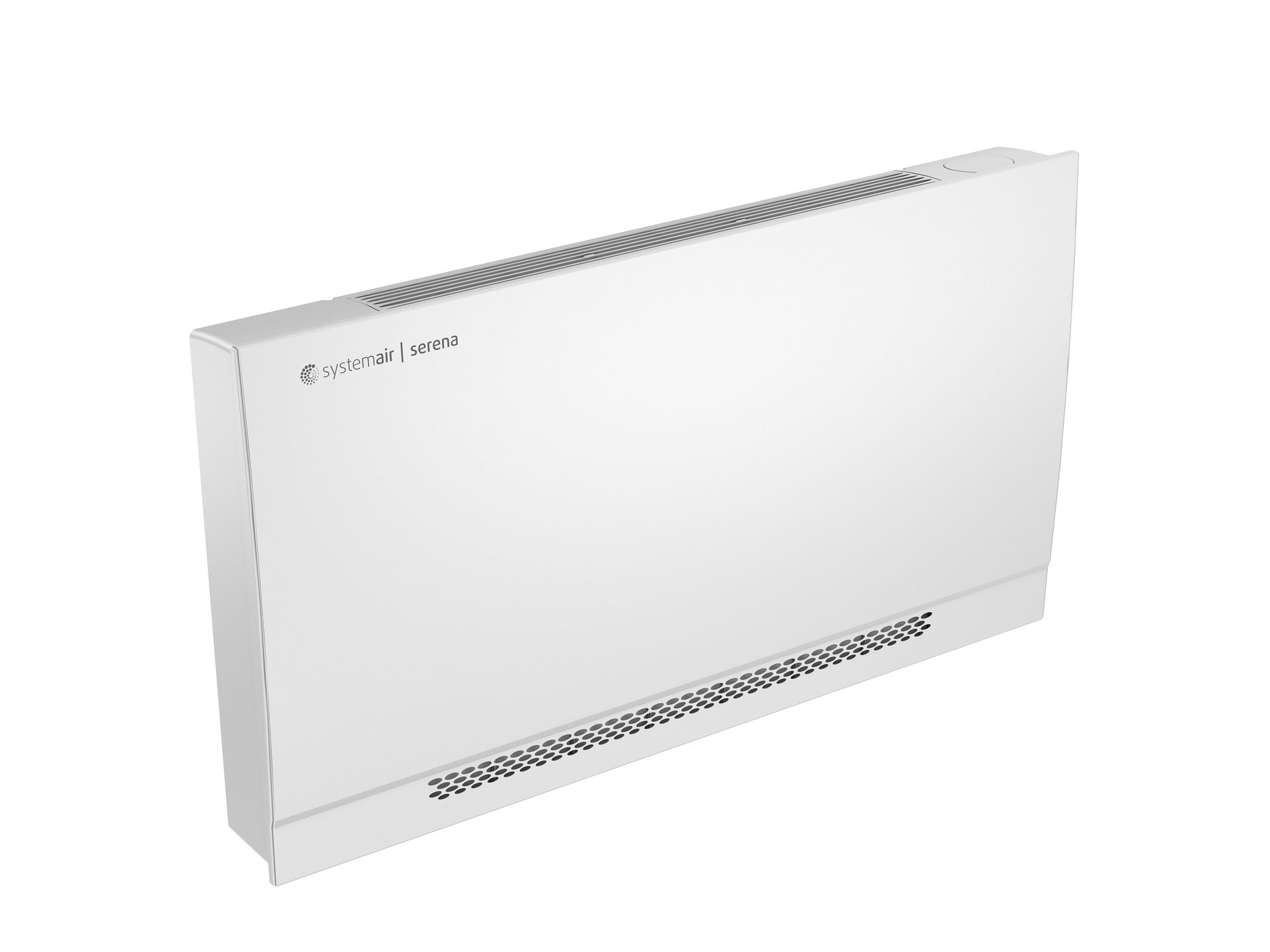

Serena S
Ultra Slim Fan Coil Units
Cooling & Heating capacity from 0.4 to 3.8 kW
Airflow from 75 to 645 m3/h
EC fans
Quiet operation
Ultra slim design
Precise and complete selection on AC SELECT
Serena W
High Wall Fan Coil Units
Cooling & Heating capacity from 1.23 to 3.76 kW
Airflow from 205 to 790 m3/h
AC and EC fan motors
Silent units
Modern design
Lightweight
Easy installation and maintenace
Precise and complete selection on AC SELECT
Serena C
Ceiling and Wall Fan Coil Units
Cooling & Heating capacity from 0.6 to 7.4 kW
Airflow from 105 to 1 500 m3/h
AC or EC fans
Vertical or horizontal installation
With or without cabinet
Quiet operation
Highly customizable
Precise and complete selection on AC SELECT
Multiple choices of color available on request

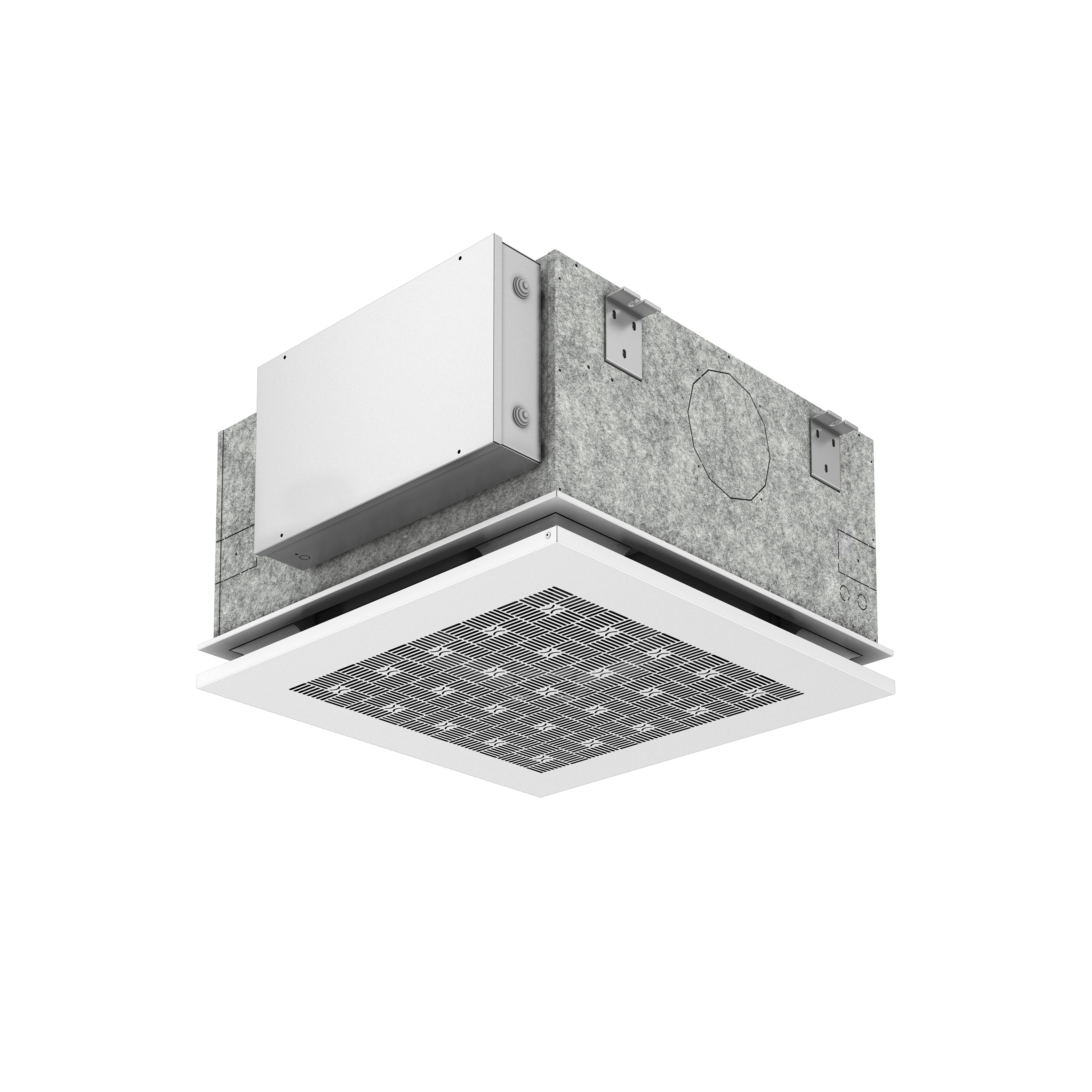

Serena K
Cassette Fan Coil Units
Cooling & Heating capacity from 1,3 to 15.0 kW
Airflow from 310 to 2 480 m3/h
AC or EC fans
Aesthetic and unique design diffusers
Quiet operation
Integrated condensate drain pump
G1 cleanable air filter
Precise and complete selection on AC SELECT
Multiple choices of color available on request
Serena M
Ducted Fan Coil Units (medium static pressure)
Cooling & Heating capacity from 1,5 to 8.6 kW
Airflow from 205 to 1 425 m3/h
Available Static pressure up to 80 Pa
Low energy consumption EC fan
Highly customizable
Quiet operation
Ease of installation and maintenance
Precise and complete selection on AC SELECT

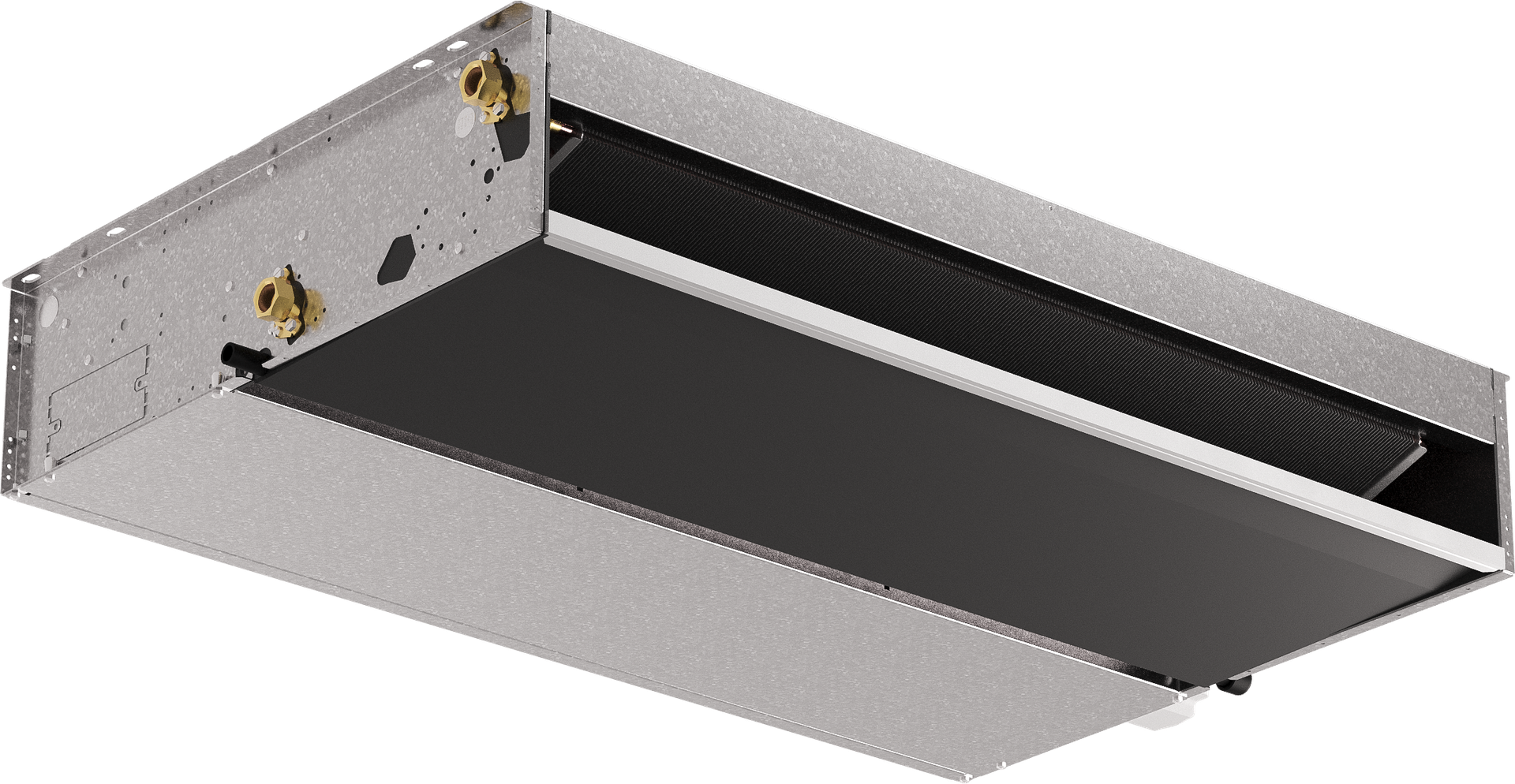

Serena V
Ducted Fan Coil Units (high static pressure)
Cooling & Heating capacity from 0.5 to 4.9 kW
Airflow from 205 to 549 m3/h
Available Static pressure up to 200 Pa
Low energy consumption EC fan
Highly customizable
Quiet operation
Ease of installation and maintenance
Precise and complete selection on AC SELECT
Systemair selection software for Fan Coil Units and Heat Pumps – the right product for each project
AC Select
)
Key features:
Create and manage projects
Select products according to design conditions
Configure options and accessories
Access technical data, specifications and dimensions
