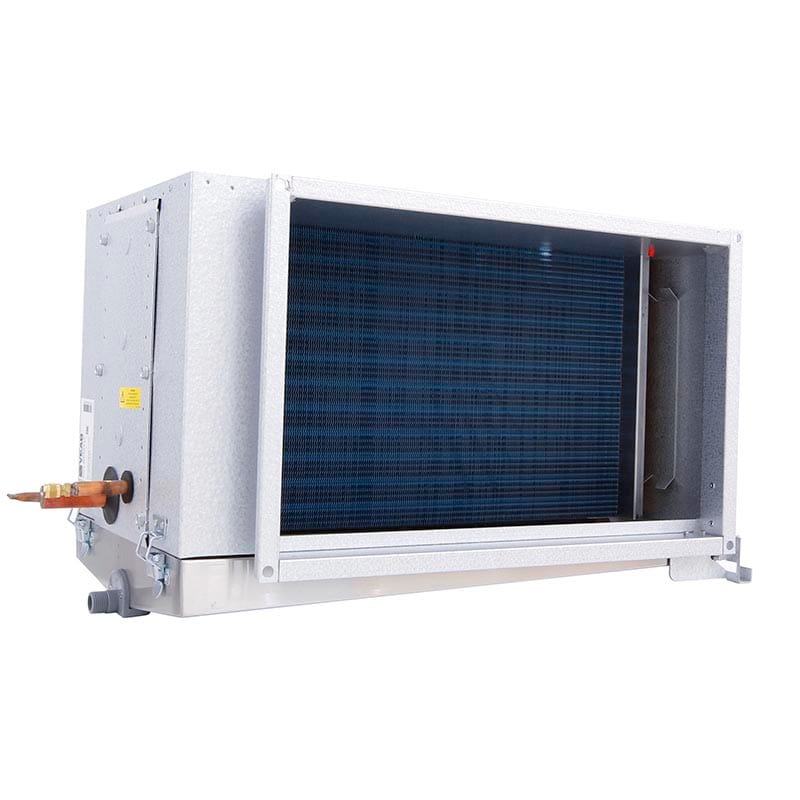

DXRE

with rectangular connections, Direct Expansion

Several standard duct sizes
DX coil for various refrigerants
Removable drip tray
Versatile use

‌
‌
‌

Versatile use

The DXRE is most commonly used for central cooling and heating of the ventilation air but can also be used for individual cooling and heating of the air supplied to individual rooms. The same model can be used for both left-hand or right-hand installation.

Robust design

DXRE has a coil of copper tubes and hydrophilic coated aluminum fins. The removable stainless steel drip tray leans towards the drain connection. A droplet eliminator (accessory) can be fitted regardless of the direction of the airflow.

Rectangular duct cooler

The DXRE is a rectangular duct cooler that is intended for installation in a horizontal duct with the airflow in either direction.

Compatibility to outdoor units

DXRE can be used with different split and VRF outdoor units and with various refrigerant types and in different modes (cooling only and heat pump). Installation should be done by certified refrigerant technician.
Max. operating pressure: 600 psi.
Max. test pressure: 695 psi.
