It Makes SENSESense Air Handling Units
Commercial ERVs that simplify ventilation design while supporting energy and IAQ goals.
Sense CX
Air Handling Units · Decentralized compact air handling unit for ceiling installation
Delivers 500 CFM of fresh air ventilation for offices, classrooms, retail spaces, and other light commercial applications.
High heat recovery efficiency
Humidity regeneration (enthalpy version)
Quiet operation – 35 dB(A) at 3' distance (nom. speed)
Integrated CO2 sensor for CO2 control
Energy-efficient EC motors

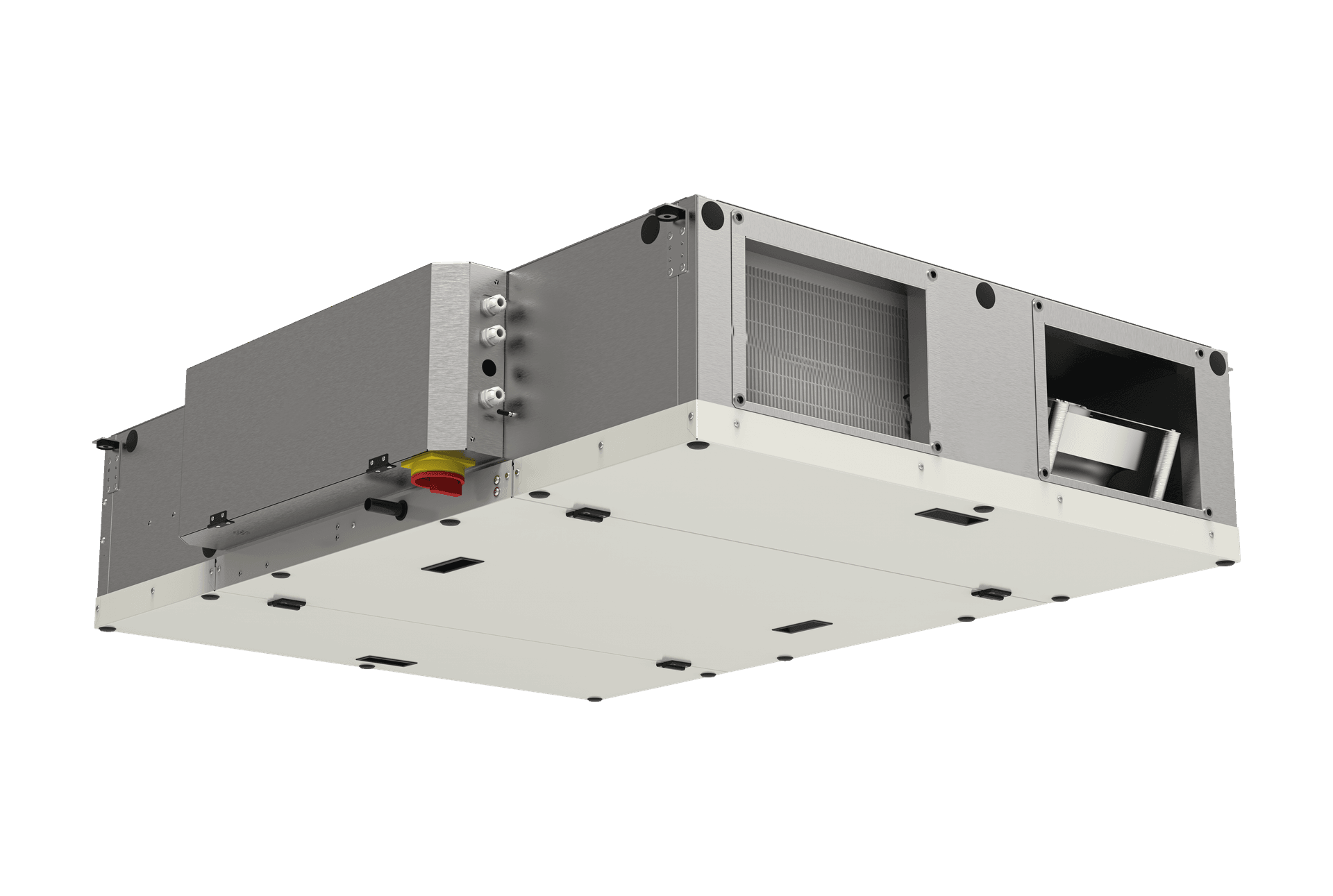

Sense FX
Air Handling Units · Decentralized compact air handling unit for ceiling installation
4 sizes with air flow up to 1,200 cfm
High heat recovery efficiency
Humidity regeneration (enthalpy version)
Energy-efficient EC fans with quiet operation
Integrated CO2 sensor for CO2 control
Passive House Certified
)
Healthy Indoor Environment
SENSE CX and SENSE FX
SENSE CX and SENSE FX combine high-efficiency energy recovery, intelligent controls, and flexible installation options to deliver fresh air exactly where it’s needed, while reducing energy consumption and maintaining consistent occupant comfort. From decentralized room-level ventilation to centralized ceiling-mounted systems, SENSE provides a complete approach to balanced, efficient, and intelligent indoor air management.
Healthy air is essential to how people learn, work, and perform. SENSE energy recovery ventilation systems deliver a continuous supply of tempered outdoor air while maintaining energy efficiency and indoor comfort.
With advanced heat and moisture recovery, intelligent demand-based controls, and flexible installation options, SENSE adapts to the needs of modern building designs, whether classrooms, offices, or commercial spaces. The result is consistent indoor air quality, reduced HVAC load, and a more comfortable environment for every occupant.
)
Engineered for Modern Mechanical Design
From Concept to Commissioning
Modern ventilation design requires flexibility, control, and dependable performance across a wide range of building conditions. SENSE CX and SENSE FX are engineered to simplify that process, delivering adaptable energy recovery solutions for decentralized (CX) and ceiling-mounted (FX) applications.
For Mechanical Engineers
SENSE CX and SENSE FX deliver high-efficiency enthalpy energy recovery (SENSE CX up to 59% | SENSE FX up to 63%), demand-controlled ventilation strategies, and BAS integration to support ASHRAE standards and high-performance goals such as LEED, Passive House, and Net Zero design.
For Mechanical Contractors
Compact footprints, flexible configurations, and installation-ready designs help reduce complexity on site and streamline installation and commissioning.
Note re: latent efficiency: based on minimum speed 300 m3/h = 177 cfm; for humidity efficiency - outdoor air temperature is 41°F (+5°C), relative humidity 72%, indoor air temperature is 77°F (+25°C), relative humidity 51 %; for humidity efficiency - outdoor air temperature is 41°F (+5°C), relative humidity 72%, indoor air temperature is 77°F (+25°C), relative humidity 28 %
)

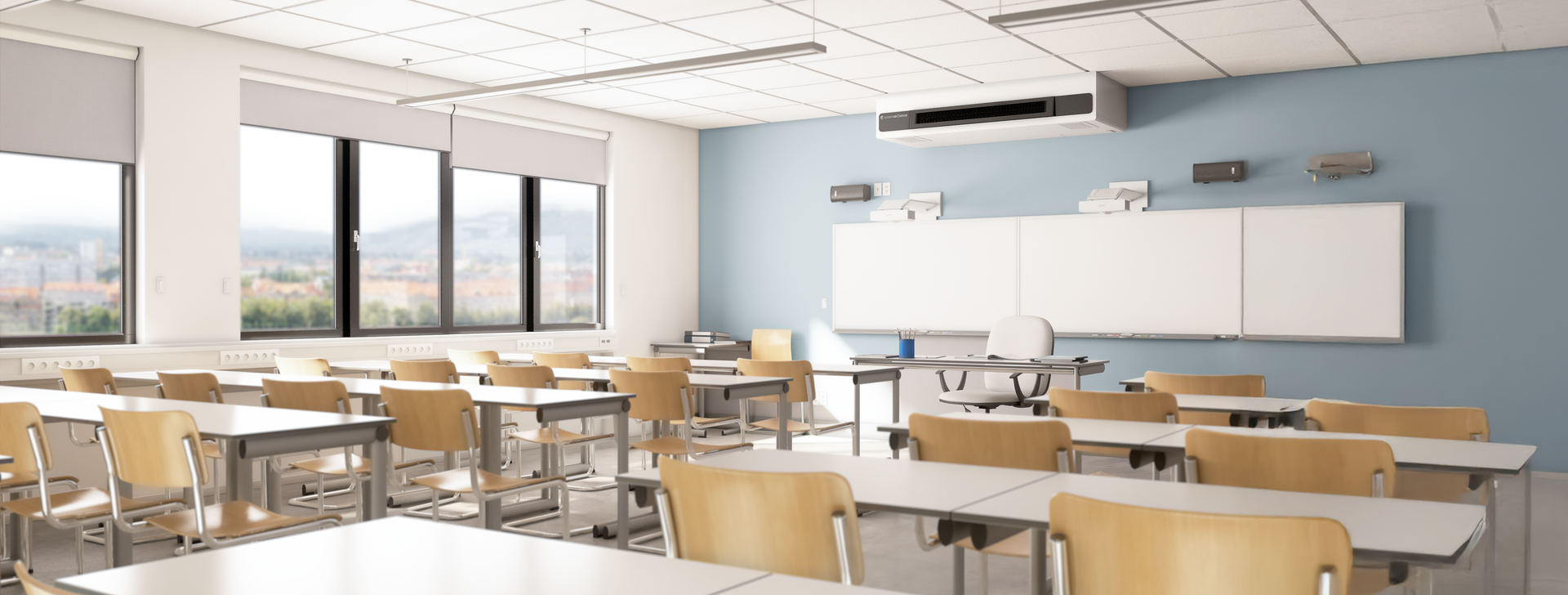

Sense CX - All-in-One Comfort
For Classroom Ventilation
High-efficiency EC fans, UL-certified construction, advanced heat and moisture recovery, integrated heating and cooling options, and intelligent controls.
Construction
Designed for conditioned indoor spaces
Double-wall insulated construction
Suitable for clean air applications
IP20 enclosure rating
High-efficiency EC Motors
Direct-drive centrifugal fans
Backward-curved impellers
Maintenance-free operation
Integrated thermal protection
Energy Recovery
Enthalpy core with up to 59% latent efficiency
High-efficiency heat and moisture transfer
Integrated modulating bypass damper
Optional condensate pump
Advanced Filtration
MERV 13 supply air filtration
MERV 8 return air filtration
Differential pressure monitoring for filter status
Easy-access service doors for maintenance
Integrated Heating & Cooling
Electric preheat (up to 2.9 kW, model dependent)
Electric or hot water reheat options
Intelligent Controls
Integrated CO₂-based demand-controlled ventilation
Occupancy-based ventilation control (CAV/DCV operation)
Multi-stage frost protection with bypass and airflow control
BACnet / Modbus BAS integration capability
| SENSE CX 500 E-EPH-RH | SENSE CX 500 E-EPH | SENSE CX 500 E-EPH-HWC | |
|---|---|---|---|
| Size (cfm @0.2 in.wg.) | 500 | 500 | 500 |
| Heating type | Electric | Electric preheater | Electric and water coil |
| Environment placement | Indoor | Indoor | Indoor |
| Fan type (material) | Composite | Composite | Composite |
| Speed regulation type | DVC, CAV, airflow control | DVC, CAV, airflow control | DVC, CAV, airflow control |
| Motor type | EC | EC | EC |
| Exchanger type | Counterflow Enthalpy | Counterflow Enthalpy | Counterflow Enthalpy |
| Installation placement | Ceiling | Ceiling | Ceiling |
)
Sense FX - All-in-One Performance
For Commercial Ventilation
Ceiling-mounted energy recovery ventilator for commercial applications.
Construction
Designed for installation above suspended ceilings or in tight mechanical spaces
Double-wall insulated construction
Suitable for clean air applications
IP20 enclosure rating
High-efficiency EC Motors
Direct-drive centrifugal fans
Backward-curved impellers
Maintenance-free operation
Integrated thermal protection
Energy Recovery
High-efficiency enthalpy recovery, both heat and moisture transfer
Integrated modulating bypass damper
Advanced Filtration
MERV 13 supply air filtration
MERV 8 return air filtration
Differential pressure monitoring for filter status
Easy-access service doors for maintenance bottom service doors
Integrated Heating & Cooling
Integrated electric preheat
Supports electric or hot water reheat with external accessories
Optional chilled water cooling
Integrated condensate tray below energy recovery core
External cooling modules require separate condensate management
Intelligent Controls
Optional CO₂ monitoring
VAV (Variable Air Volume), DCV (Demand-controlled Ventilation), and CAV (Constant Air Volume)
Multi-stage frost protection
BAS integration capability
| SENSE FX 250e | SENSE FX 400E | SENSE FX 900E | SENSE FX 1200E | |
| Size (cfm @0.2 in.wg.) | 250 | 400 | 900 | 1200 |
| Pre-Heating type | Electric | Heating | Heating | Heating |
| Environment placement | Indoor | Indoor | Indoor | Indoor |
| Fan type (material) | Composite | Composite | Composite | Composite |
| Speed regulation type | DCV, VAV or CAV airflow control | DCV, VAV or CAV airflow control | DCV, VAV or CAV airflow control | DCV, VAV or CAV airflow control |
| Motor type | EC | EC | EC | EC |
| Exchanger type | Counterflow Enthalpic | Counterflow Enthalpic | Counterflow Enthalpic | Counterflow Enthalpic |
| Installation placement | Ceiling | Ceiling | Ceiling | Ceiling |
)

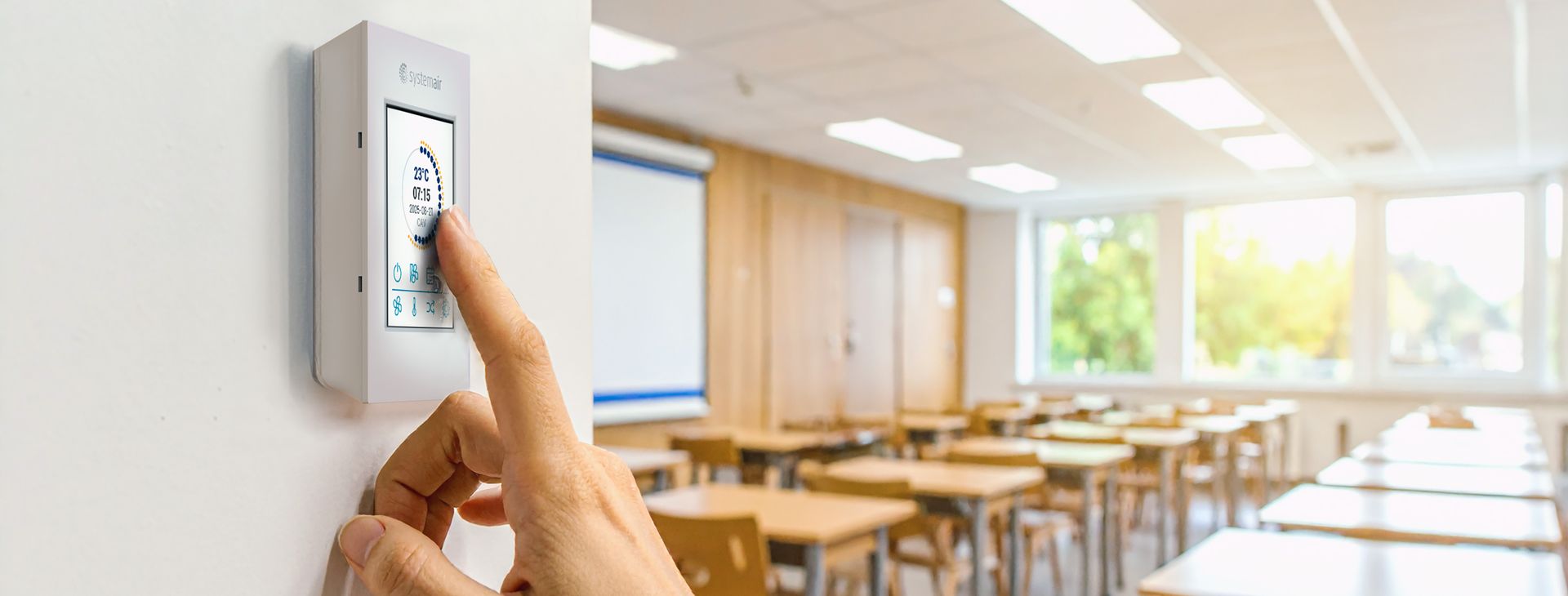

Precision Control, Perfect Climate
Smart Modes for Every Situation
Control with Confidence.
SENSE units are equipped with intelligent control functions that ensure reliable, efficient, and flexible operation. From stepless fan and heating control to demand-based ventilation, automatic antifreeze protection, and precise filter monitoring, every component is designed for optimal performance and energy savings. These smart features guarantee maximum comfort, safety, and sustainability and ensure your system is future-proof.
Airflow control
Stepless EC fans controls by PWM signal - fan offset setting available (under-pressure, over-pressure)
CAV - constant air volume (Airflow control in m3/h)
DCV – automatic control (Airflow control based on AQS parameters)
VAV - variable air volume (Constant pressure and balanced airflow)
CO2 sensor 0-2000ppm (optional, included as standard in SENSE CX only)
AQS - Possibility to connect (CO2, RH, VOC,…)
Temperature Control
Possible sensor selection:
Room range 50-86°F
Extract duct (ETA) - range 50-86°F
Supply duct (SUP) - range 50-113°F
Setable supply duct limits:
Available for temperature control based on a room and ETA sensors
Range: 50-113°F
Stepless BY-PASS control
Temperature control, anti-freeze protection, free-cooling
Electric PRE-heater
Fluent heat output control (PWM, SSR)
Anti-freeze protection of heat recovery exchanger only
Temperature Control (continued)
Electric POST-heater
Fluent heat output control (PWM, SSR)
Water heater
Fluent heat output control (0-10V)
Automatic antifreeze protection
WCO (Water Change/Over) coil for external modules
Fluent output control (0-10V)
Automatic detection of heating / cooling water and anti-freeze protection
DX control for external modules
External module control by various signal options (ON/OFF, 0-10V)
Heat pump error input, Defrost input, HEAT/COOL output.
| SENSE CX | SENSE FX | |
| BOOST | ✓ | ✓ |
| FREE COOLING | ✓ | ✓ |
| OCCUPANCY | ✓ | ✓ |
| TIMER | ✓ | ✓ |
| FIRE | ✓ | ✓ |
)
Want more information?
Explore the complete SENSE CX and SENSE FX brochure to learn how these commercial energy recovery ventilators help simplify ventilation design while supporting energy efficiency and indoor air quality goals. Discover key features, application guidance, technical specifications, and control capabilities designed for today's commercial buildings.
Download the brochure to see how SENSE delivers intelligent, efficient ventilation solutions.
