Role of Ventilation in LEED and Passivhaus Certification

Achieving Passivhaus or LEED certification represents a serious commitment to building performance. These programs push beyond baseline code requirements, demanding precision in energy use, indoor air quality, and comfort. Ventilation, often overlooked in early planning stages, plays a foundational role in both. Well-designed ventilation improves energy savings, supports indoor health, and helps projects move beyond code toward high performance.

Passivhaus and LEED share many goals. And while their methodologies differ, both reward intelligent ventilation strategies that support energy recovery, low fan energy, and consistent air quality. Choosing the right ventilation system early helps design teams meet high performance goals and reduce complexity in project delivery.

In the Passivhaus standard, ventilation is non-negotiable. With airtight envelopes and heavily insulated construction, buildings naturally leak air found in conventional designs. High-efficiency mechanical ventilation brings in fresh air while reducing energy loss, keeping indoor spaces comfortable and efficient.

Heat recovery ventilators (HRVs) are integral here. They reduce the building’s reliance on mechanical heating and cooling by preconditioning the incoming air. In a certified Passivhaus project, these systems must also deliver exceptional efficiency—having to exceed 75% sensible heat recovery—while operating with minimal fan energy.

Balanced airflow is also critical. Over-ventilating wastes energy, while under-ventilating can compromise occupant health and building durability.

Each kilowatt-hour saved strengthens a project's energy model. That’s why properly sized, low-leakage ventilation units with optimized duct layouts are essential. When space heating is limited to 15 kWh/m² per year, ventilation must support energy goals, not increase demand.

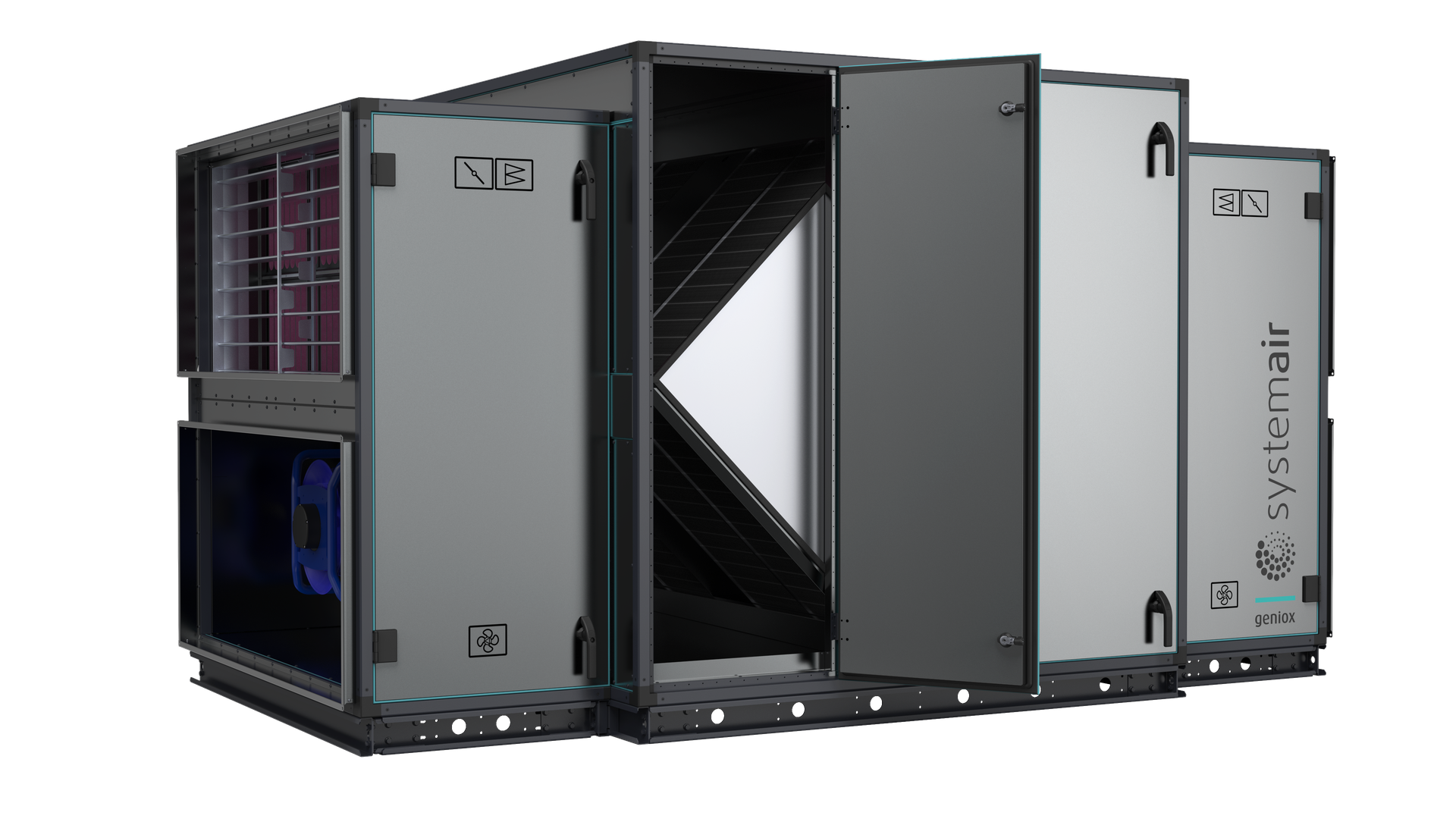

Systemair’s product development is rooted in helping project teams meet advanced Passivhaus ventilation and LEED ventilation requirements—without overcomplicating system design. Geniox AHUs include HRV and ERV models that meet Passivhaus standards and reduce heat loss through a thermally broken air-tight cabinet.

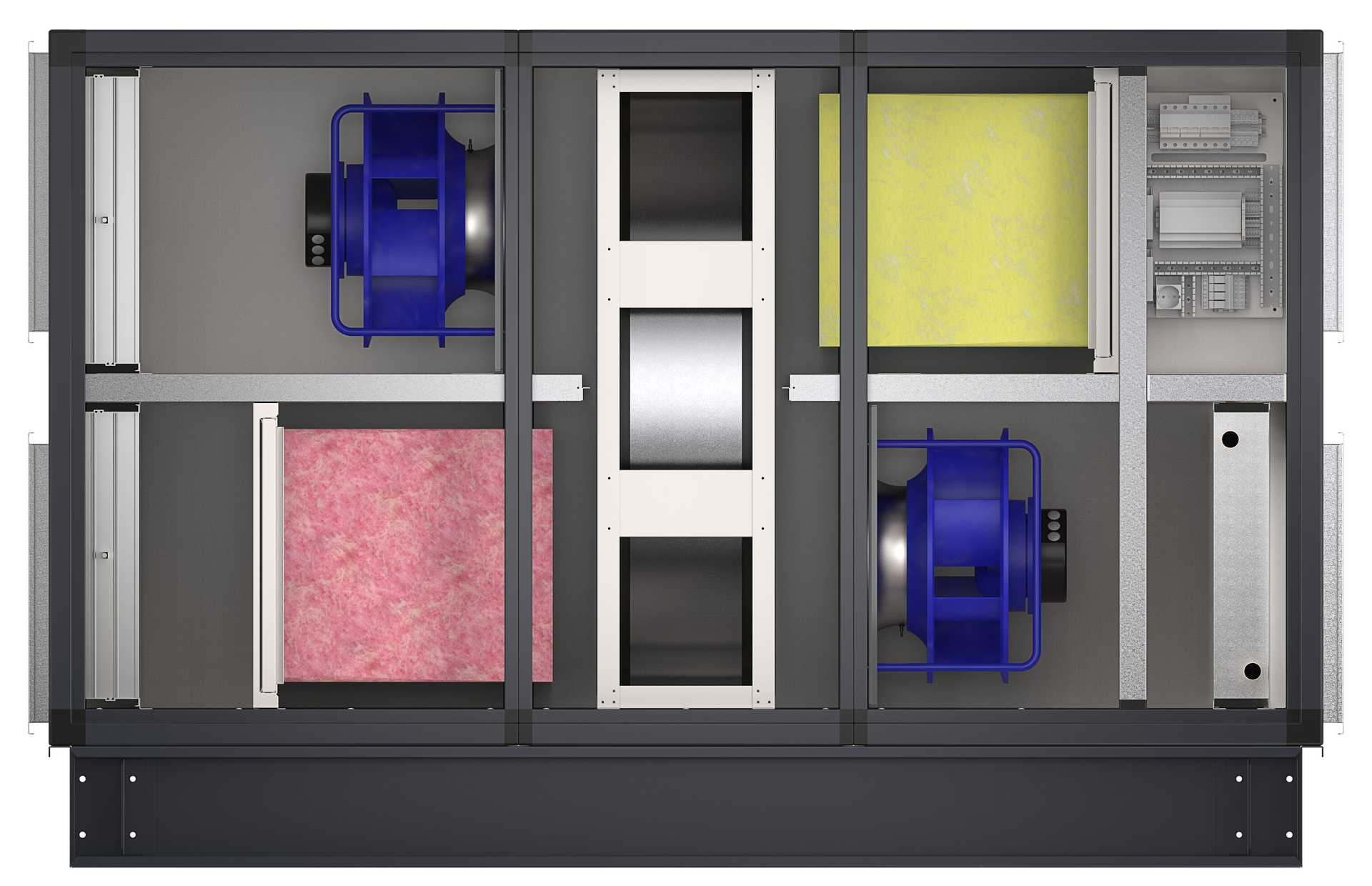

Geniox units use tight casings, efficient motors, and high-performance heat exchangers to meet certification requirements. Their modular format allows for precise configuration based on the project’s ventilation load, filtration requirements, and control strategy.

Systemair also supports LEED-aligned priorities. Geniox units include variable-speed fans, smart controls, and demand-based ventilation, working well in new and retrofit projects. Projects that aim for dual certification benefit from a single, trusted solution built to deliver across standards.
