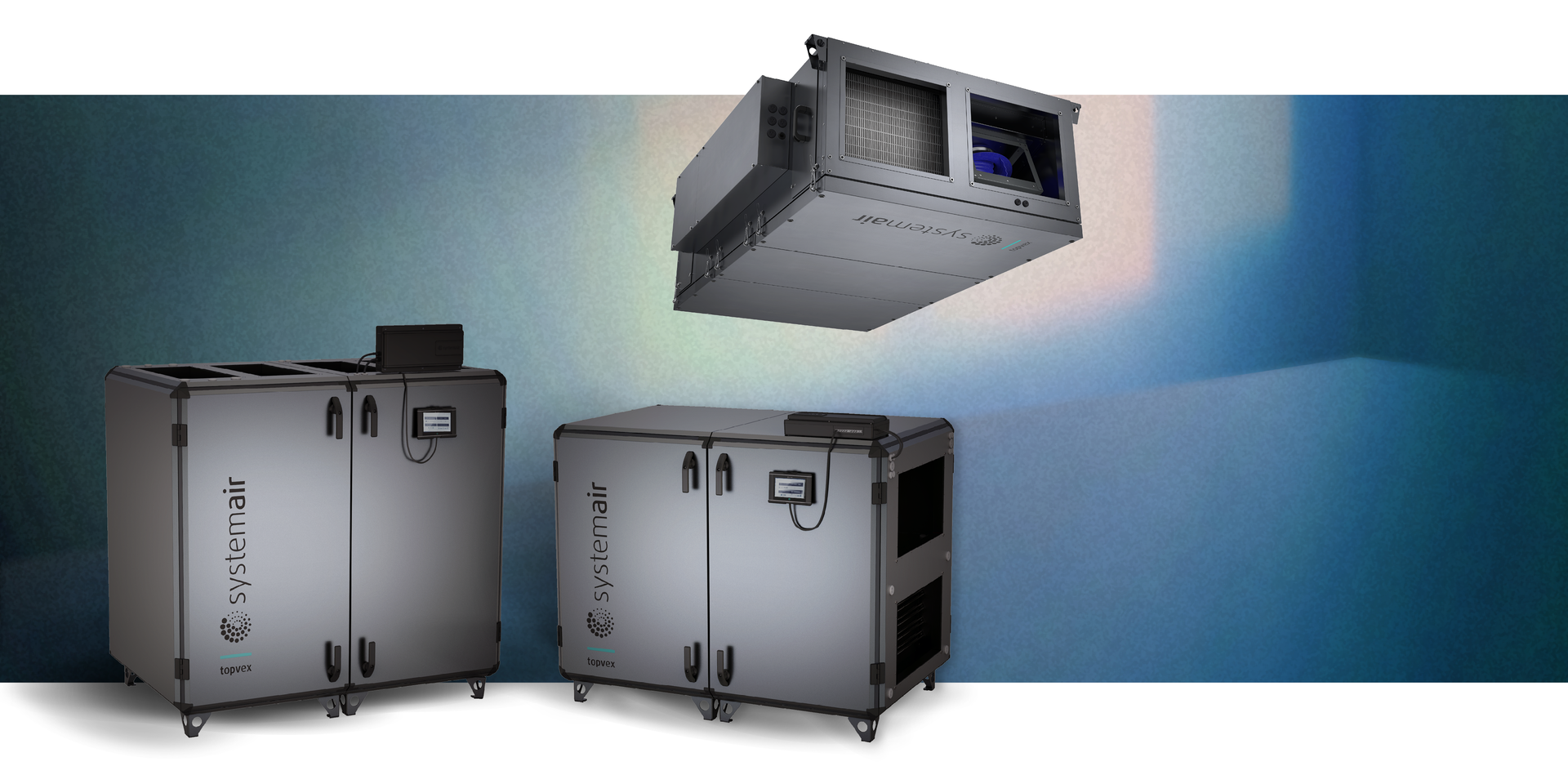

Exactly what you need!Topvex Air Handling Units
Wide range of compact and standardized air handling units for easy installation and fast delivery.
EASY.
Simple selection and installation. Easy to connect, configure and control with Access control system - with wireless communication!
QUICK.
Wide range of standardized units available for fast delivery. Quick installation and commissioning.
COMPACT.
Easy to fit or retrofit into the building. Minimum space required. Smooth delivery.

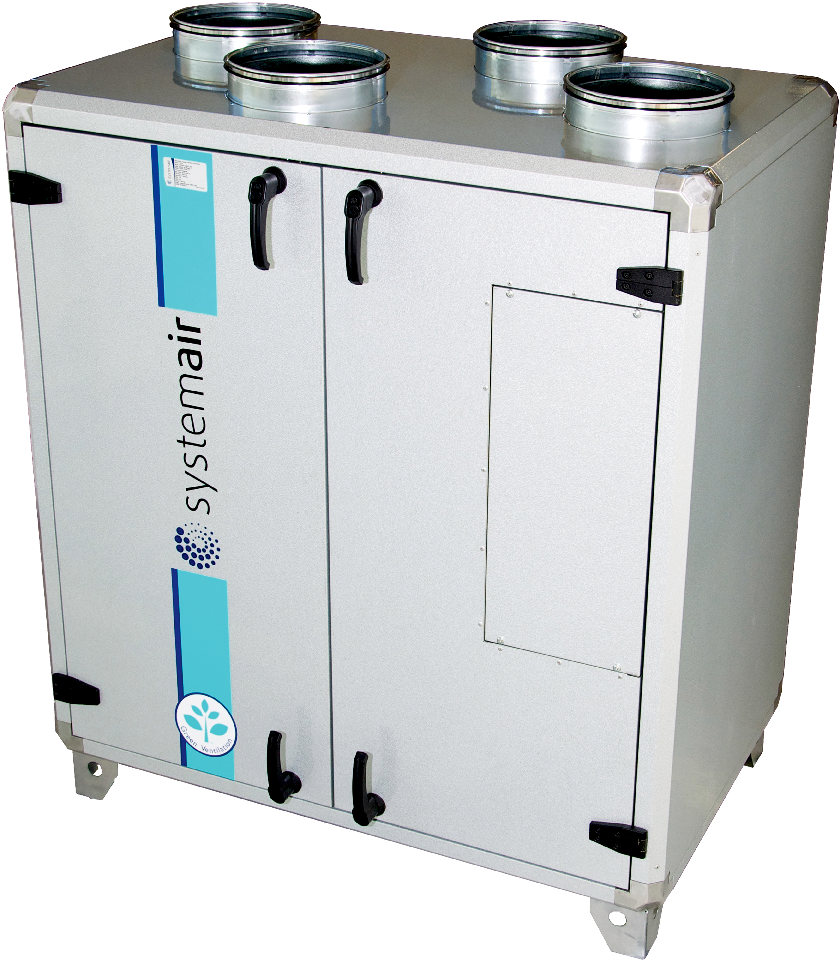

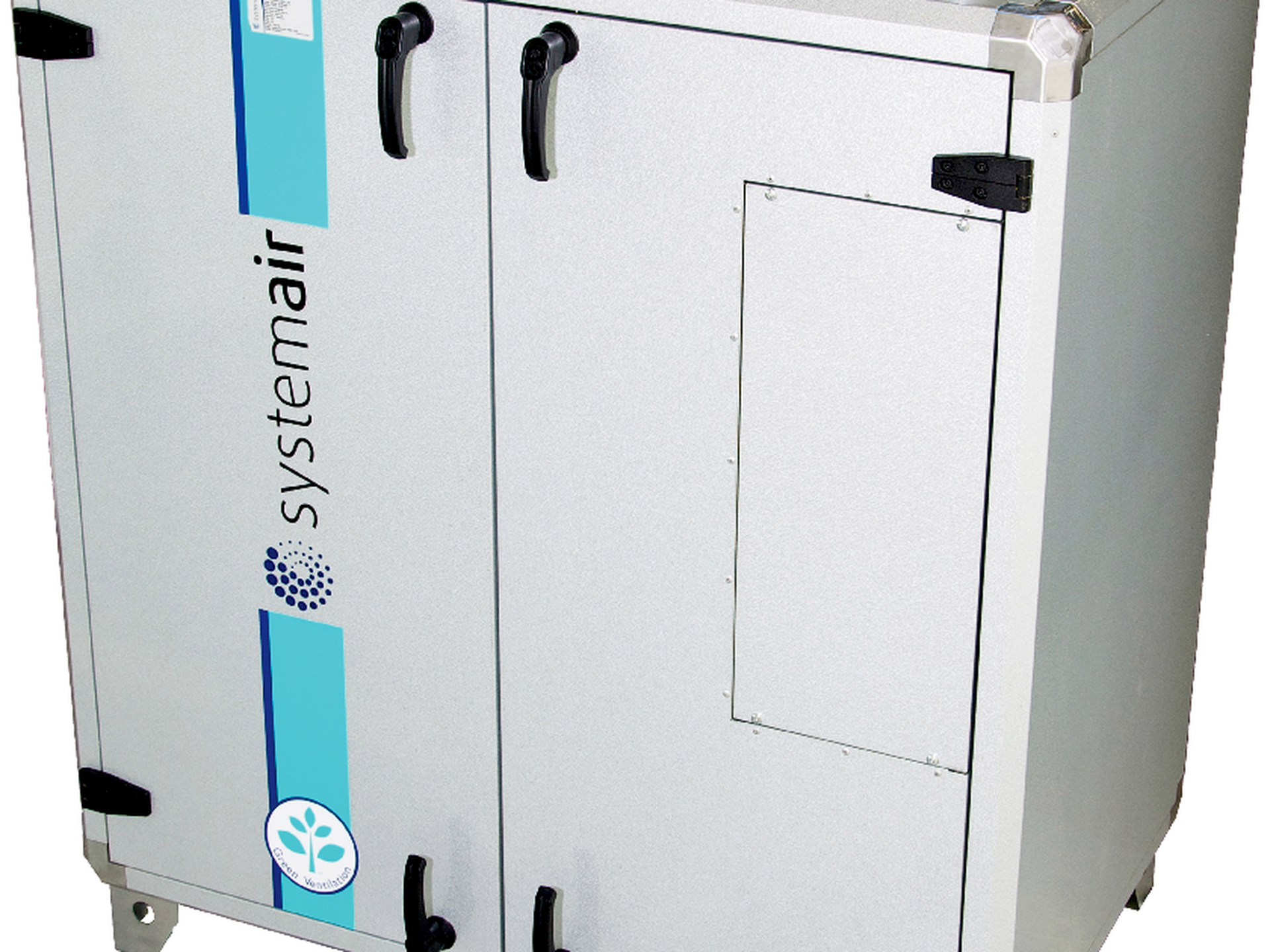

Topvex TR
Air Handling Units · The slim, compact design offers superior performance ienergy transfer, operation and sound. Airflow range: 400 up to 4,000 cfm.
Rotary heat exchangers
High performance, heat recovery
Fits through 900 mm openings
Topvex FR
Air Handling Units · Flat, compact air handling unit featuring rotary heat exchangers with airflow range: 300 to 3,800 cfm
High performance rotary heat exchangers
Heaters with stepless control
Flexible installation options
Topvex SR
Air Handling Units · The compact, side-connected design of the Topvex SR Series Energy Recovery Ventilators delivers exceptional performance, easy installation, and quiet operation — ideal for projects where top connections aren’t an option.
Airflows: 248 - 3673 cfm
Easy - Selection, installation and intuitive control system.
Quick - Wide range of standardized units with fast delivery.
Compact - Delivers high performance in a compact footprint. Fits through 36" openings.
Topvex TR Next Generation
Air Handling Units · Top connected air handling units with rotary energy exchangers that are highly efficient, easy to install, and whisper-quiet—with more control at your fingertips.
Airflows: 249 - 3473 cfm.
Easy - Selection, installation and intuitive control system.
Quick - Wide range of standardized units with fast delivery.
Compact - Delivers high performance in a compact footprint. Fits through 36" openings.
Certified - The Topvex TR is Passive House certified.
We understand your challenges
Regardless of your role and needs
Consultants
Topvex offers a comprehensive solution, combining high energy efficiency, flexible designs, and feature-rich tools for your planning.
Powerful product selection tool with plugins for Revit, AutoCAD, and MagiCAD
Seamless BIM model integration for accurate and reliable drawings
Space-saving design with minimal footprint
Versatile indoor/outdoor installation options
Installers
Benefit from short lead times and rapid technical support. Designed for efficiency, from selection to startup.
Easy to select - standardized range with fast delivery
Simplified transportation and installation, with split options for larger units
External connection box for quick setup and maintenance
Streamlined design simplifies installation, reducing both time and costs
Building Owners & managers
Topvex AHUs deliver superior climate control while minimizing operating costs and maximizing valuable space utilization.
High-quality indoor climate for occupant health and wellbeing
Space-saving, frameless design
Certified energy efficiency with high heat recovery and optimal SFP-values
Low maintenance and reliable operation
Topvex AHU - The compact solution for any space
Various installation possibilities
The Topvex range features compact predefined air handling units ideal for buildings where space is limited. It is a perfect solution for small to mid-sized premises including apartment blocks, offices, schools, shops, restaurants and light industrial buildings.
Our Topvex portfolio includes floor standing and flat compact air handling units, for both indoor and outdoor installations:
Rotary heat exchangers
Pure supply air
)
Flat Compact unit
Topvex FC installed inside the ceiling of a passive house leisure center
Flat Compact unit
Topvex FS installed below a ceiling in a kitchen
Floor standing unit
Topvex installed in an office building of a metalworking center
Floor standing unit
Topvex installed outside on the roof of a high school
High quality casing across the Topvex range
High-performance casing
The joint panel and plastic profiles, combined with latch, hinge, insulation and seal concepts, result in a high-performance unit.
Doors have 2" (50 mm) insulation
C5 standard corrosion class (MgZn)
Floor standing AHU - Casing panels 2" (50 mm) insulation
Flat Compact AHU - Casing panels 1.2" (30 mm) insulation
)
Hatches
Doors 2" (50 mm) insulation
Corrosion class
C5 standard corrosion class (MgZn)
Corrosion class
C5 standard corrosion class (MgZn)
Casing
Casing 2" (50 mm) insulation
Casing
Casing 1.2" (30 mm) insulation
Systemair Configurator for AHU Topvex: Streamline Your Ventilation Project
Topvex Configurator
)
Easily select and configure Topvex units with our web-based configurator. Export BIM models to your CAD program using the Systemair Topvex plugin.
Key features:
One-click access from CAD programs
Design air handling units effortlessly
Transfer BIM data to Revit, AutoCAD, and MagiCAD
Generate and download documentation
The plugin automatically detects parameter changes, prompting recalculation for up-to-date BIM models
)
Systemair Access Control System: Wireless Optimization for our AHUs
Enhance indoor climate control
Systemair Access offers wireless communication for Topvex air handling units, providing real-time monitoring and energy insights.
Key features:
Configure and manage AHUs with Access Connect app.
Control via smartphone, tablet, or NaviPad.
Intuitive menus for easy climate control.
Efficient setup with start-up wizard.
Modbus communication streamlines wiring.
Cloud service for accessibility outside the building.
By maximizing AHU efficiency, users can create an optimal indoor climate while reducing energy consumption and operating costs.
