AXC-G Axial Fans
High pressure axial fan for garages and industrial applications
High pressure
Two fans mounted in series
Configurable in the Axial Fans Configurator
High pressure
Two unidirectionally rotating fans are mounted in series to provide very high pressure in systems with complicated ducting.
Application
The AXC-G is an axial fan ideal for use in garages and other industrial applications and provides effective extraction in operating temperatures up to 55°C continuously.
Performance
The fan can be configured to suit the individual operating point. Therefore, the pitch angle is adjusted in the factory. This provides a wide range of performance and high flexibility in the selection.
Sturdy and dependable design
Corrosion-proof aluminum impellers, IE3 high-efficiency motors and a hot-dip galvanized steel casing ensure high quality and a long life time.
Flexibility
On request AXC fans can be customized with the following options:
Wide range of accessories
Various coating colors
Special motor versions e.g. up to 100°C, with corrosion protection C5 or for other voltages
FAT for projects
Noise reduction AXC-Box can be used
Casings of stainless steel or shorter casings
Different positions for the terminal boxes
X-ray tested blades and hubs
Tested according to ISO 5801 and AMCA 210
The AXC axial fans have been performance tested in accordance with ISO 5801 and AMCA 210 standards on the Systemair or AMCA fan test rig. To select AMCA certified fans check the axial fan configurator.
)
Systemair Accessories – the perfect match!
Save time in design and installation while ensuring the most optimal ventilation solutions for your project.
Featured accessories for your AXC(G)-fan
?_=1722062248836)
FSD-AXC
Spring damper for AXC fans
?_=1722206297147)
MFA-AR/AXC
Mounting feet for axial fans
?_=1722203884504)

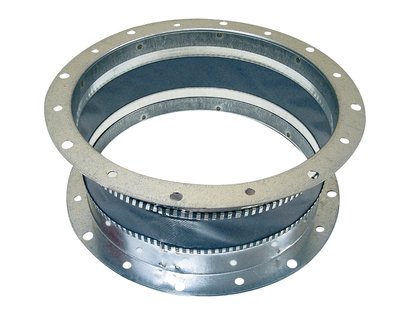

EV-AR/AXC
Flexible connector for axial fans
Construction
The fan AXC-G contains two unidirectionally rotating fans that are mounted in series . The casing is made from hot-dip galvanised steel according to ISO 1461 with pre-drilled flanges. The terminal box with IP 65 is mounted outside on the casing.
Impeller
The impellers are made of aluminum and are dynamically balanced in accordance with ISO 21940-11, balancing quality G6,3, and vibration limits according to ISO 14694.
Motor
Standard models are driven by three-phase AC motors with efficiency IE3 suitable for 50Hz and optionally for 60Hz.
Motor protection
The motors are equipped with PTC thermistors for motor protection.
Control
Motors can be speed controlled by frequency inverter between 10 and 60 Hz.
Installation
The AXC-G fans can be installed in different positions indoor and outdoor (for more information see the manual).
Recommended accessories: flexible connections, vibration dampers, mounting feet.
