AXC-EX Axial Fans

Explosion proof axial fan for special atmospheres

  • ATEX certified

  • Configurable in the Axial Fans Configurator

  • Performance tested

ATEX certified

The AXC-EX is suitable for operation in temperatures between -20°C and 60°C and has explosion proof marking: II 2G Ex h IIB+H2 T4 Gb. AXC-EX fans are certified under the no TPS 21 ATEX 085751 0010 X.

Application

The AXC-EX range is designed for use in challenging environments where explosive atmospheres can occur.

The fans can be used for zones 1 or 2, field of application II, for gases of groups IIA, IIB and hydrogen and temperature classes T1 to T4. The fans are classified to category 2G.

Performance

The fan can be configured to suit the individual operating point. Therefore, the pitch angle is adjusted in the factory. This provides a wide range of performance and high flexibility in the selection.

Sturdy and dependable design

Corrosion-proof aluminum impellers, IE3 high-efficiency motors and a hot-dip galvanized steel casing ensure high quality and a long life time.

Flexibility

On request AXC fans can be customized with the following options:

  • Wide range of accessories

  • Various coating colors

  • FAT for projects

  • Noise reduction AXC-Box can be used

  • Casings of stainless steel or shorter casings

  • Different positions for the terminal boxes

  • X-ray tested blades and hubs

Tested according to ISO 5801 and AMCA 210

The AXC axial fans have been performance tested in accordance with ISO 5801 and AMCA 210 standards on the Systemair or AMCA fan test rig. To select AMCA certified fans check the axial fan configurator.

Systemair Accessories – the perfect match!

Save time in design and installation while ensuring the most optimal ventilation solutions for your project.

Featured accessories for your AXC-EX fan

FSD-AXC, Spring damper for AXC fans
FSD-AXC
Spring damper for AXC fans
MFA-AR/AXC, Mounting feet for axial fans
MFA-AR/AXC
Mounting feet for axial fans

Construction

The casing is made from hot-dip galvanised steel according to ISO 1461 with pre-drilled flanges. The terminal box with IP 65 is mounted outside on the  casing.

Impeller

The impellers are made of aluminum and are dynamically balanced in accordance with ISO 21940-11, balancing quality G6,3, and vibration limits according to ISO 14694.

Motor

Standard models are driven by three-phase AC motors with efficiency IE3 suitable for 50Hz and optionally for 60Hz.

Motor protection

The motors are equipped with PTC thermistors for motor protection.

Control

Motors can be speed controlled by frequency inverter between 10 and 60 Hz.

Installation

The AXC-EX fans can be installed in different positions indoor and outdoor (for more information see the manual).

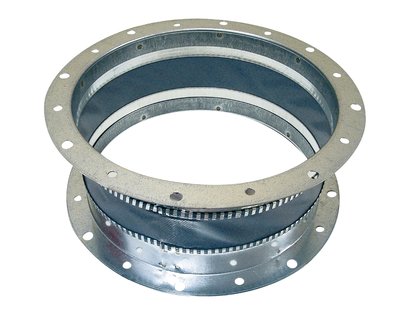

Recommended accessories: flexible connections, vibration dampers, mounting feet.
