AXC(B) Axial Fans
Efficient smoke extraction axial fan
Certified for 300°C/120min
Installation inside or outside of the fire zone
Configurable in the Axial Fans Configurator
EN 12101-3 certified
The AXC(B) axial fans have been performance tested in accordance with multiple standards on the Systemair or AMCA fan test rig and are certified for 300°C/120min smoke extraction.
The complete range is certified for installing inside or outside of the fire zone.
Application
The AXC(B) provides effective extraction in operating temperatures up to 55°C continuously and up to 300°C for 2 hours.
Performance
The fan can be configured to suit the individual operating point. Therefore, the pitch angle is adjusted in the factory. This provides a wide range of performance and high flexibility in the selection. A guide vane is available for higher pressure and efficiency.
Sturdy and dependable design
Corrosion-proof aluminum impellers, IE3 high-efficiency motors and a hot-dip galvanized steel casing ensure high quality and a long life time.
Flexibility
On request AXC fans can be customized with the following options:
Wide range of accessories
Various coating colors
Special motor versions e.g. up to 100°C, with corrosion protection C5 or for other voltages
FAT for projects
Noise reduction AXC-Box can be used
Casings of stainless steel or shorter casings
Different positions for the terminal boxes
X-ray tested blades and hubs
Tested according to ISO 5801 and AMCA 210
The AXC axial fans have been performance tested in accordance with ISO 5801 and AMCA 210 standards on the Systemair or AMCA fan test rig. To select AMCA certified fans check the axial fan configurator.
)
Systemair Accessories – the perfect match!
Save time in design and installation while ensuring the most optimal ventilation solutions for your project.
Featured accessories for your AXC(B)-fan
?_=1722062248836)
FSD-AXC
Spring damper for AXC fans
?_=1722206297147)

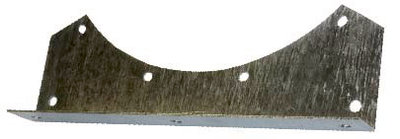

MFA-AR/AXC
Mounting feet for axial fans
?_=1722057060888)

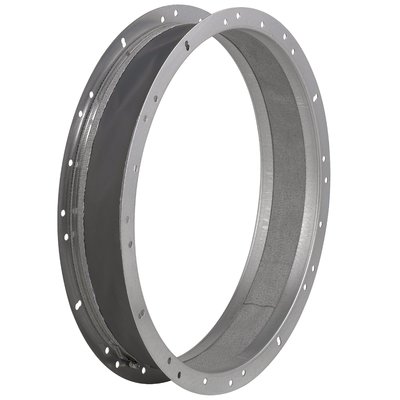

EVH
Flexible connector for air handling units
Construction
The casing is made from hot-dip galvanised steel according to ISO 1461 with pre-drilled flanges. The terminal box with IP 65 is mounted outside on the casing.
Impeller
The impellers are made of aluminum and are dynamically balanced in accordance with ISO 21940-11, balancing quality G6,3, and vibration limits according to ISO 14694.
Motor
Standard models are driven by three-phase AC motors with efficiency IE3 suitable for 50Hz and optionally for 60Hz.
Motor protection
The motors can be equipped with PTC thermistors for motor protection (on request).
Control
Motors can be speed controlled by frequency inverter between 10 and 60 Hz.
Installation
The AXC(B) fans can be installed in different positions indoor and outdoor, outside or inside of fire zone (for more information see the manual).
Recommended accessories: flexible connections, vibration dampers, mounting feet.
